Christmas came early for the 21.5" Intel iMac, for today it receives the gift of high definition in the form of a 4K display. If you’re asking Santa for this pixel-powerhouse, be sure to specify you'd like the 4K and not his evil twin brother—the iMac Intel 21.5" EMC 2889. And now for everyone’s favorite part, time to unwrap the goods!

Want more teardowns in your life? No need to ask Santa, we've got you covered! Follow us on Twitter, Instagram, and Facebook!

This teardown is not a repair guide. To repair your iMac Intel 21.5" Retina 4K Display (2015), use our service manual.

Image 1/3: 3.1 GHz quad-core Intel Core i5-5675R (Turbo Boost up to 3.6 GHz) Image 2/3: 8 GB (2x4 GB) of 1867 MHz LPDDR3 RAM Image 3/3: Intel Iris Pro Graphics 6200

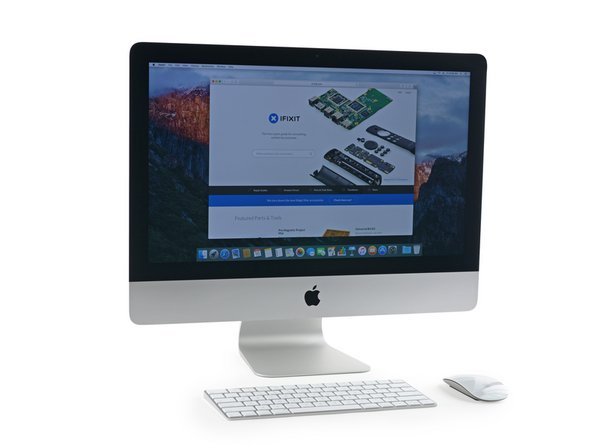

  • Along with a spectacular display, the 21.5" Retina 4K iMac has some new age specs:

    • 3.1 GHz quad-core Intel Core i5-5675R (Turbo Boost up to 3.6 GHz)

    • 8 GB (2x4 GB) of 1867 MHz LPDDR3 RAM

    • Intel Iris Pro Graphics 6200

    • 1 TB (5400-rpm) hard drive, configurable up to 2 TB Fusion Drive or 512 GB of flash storage.

    • 802.11ac Wi-Fi + Bluetooth 4.0

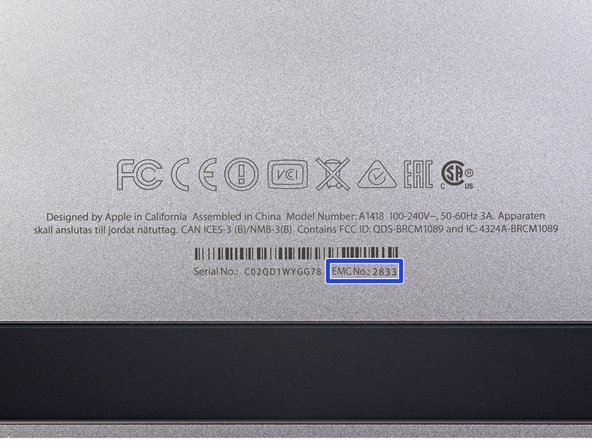

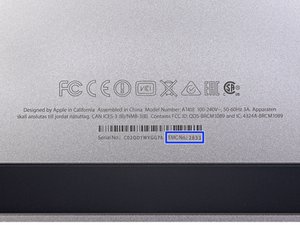

    • Shiny new EMC number, 2833 (same ol' model number A1418).

Add Comment

Image 1/3: This new display (first image) packs quite a punch, especially compared to the non-Retina iMac (second image). The difference is like pixelated night and seamless day. Image 2/3: We got up-close and personal with the a few of the (over 9 million) pixels in the 4K IPS display. Each is made up of a red, green, and blue strip—vary those and you get a colored pixel. Image 3/3: This 4,096 x 2,304 pixel display packs more than ''4.5 times'' the number of pixels in a [https://www.ifixit.com/Teardown/iMac+Intel+21.5-Inch+EMC+2889+Teardown/50961|standard 21.5" iMac display].
  • The colors, Duke! The colors!

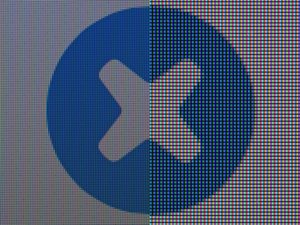

  • This new display (first image) packs quite a punch, especially compared to the non-Retina iMac (second image). The difference is like pixelated night and seamless day.

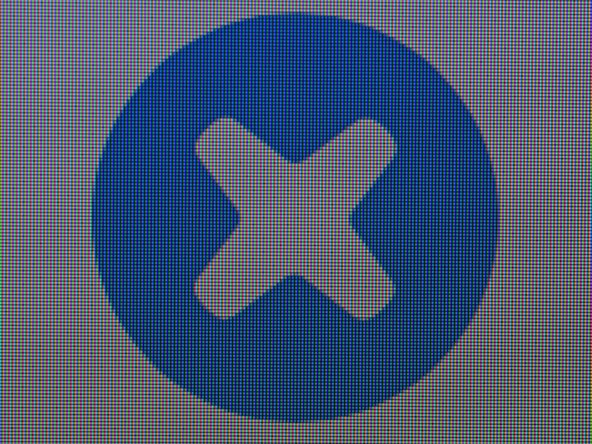

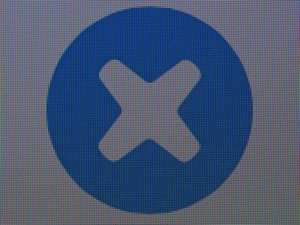

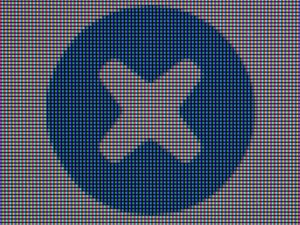

  • We got up-close and personal with the a few of the (over 9 million) pixels in the 4K IPS display. Each is made up of a red, green, and blue strip—vary those and you get a colored pixel.

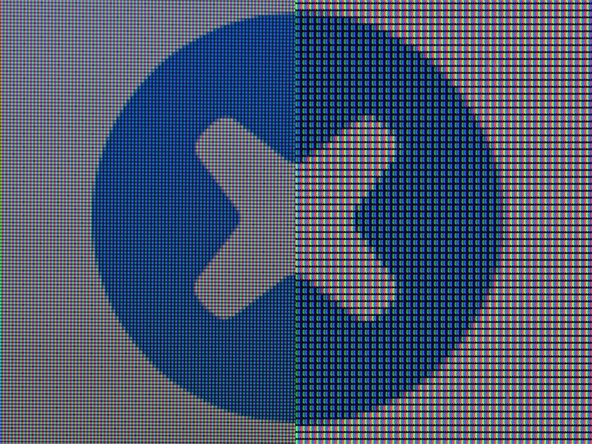

  • This 4,096 x 2,304 pixel display packs more than 4.5 times the number of pixels in a standard 21.5" iMac display.

Add Comment

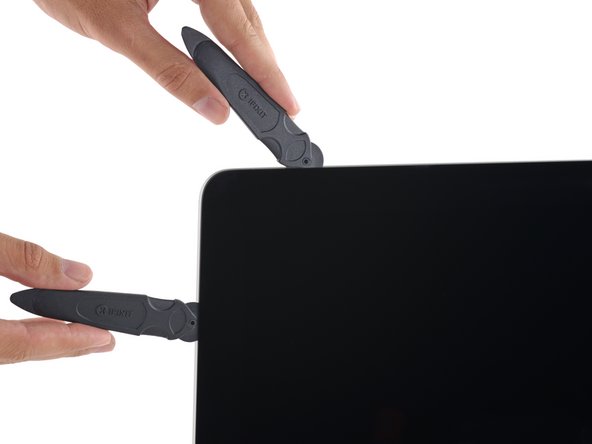

  • Double the opening tool, double the opening speed! We've done so many of these we figure we gotta step our game up a bit.

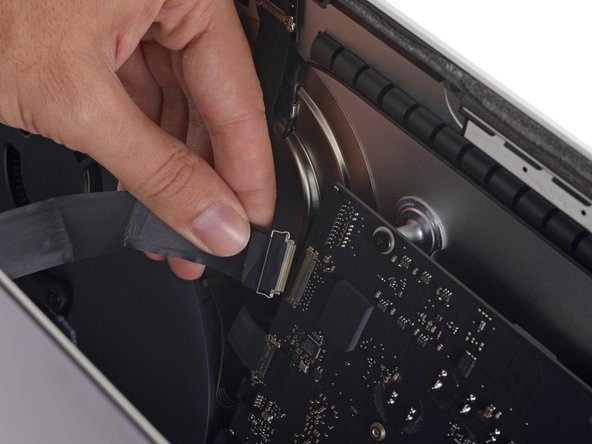

  • The display cable is now slightly wider to support all those extras pixels. 16.4 mm over the 12.4 mm of the non-Retina 21.5".

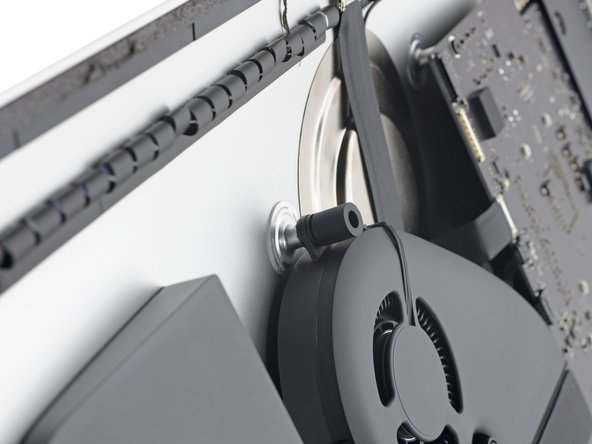

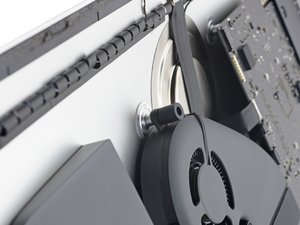

  • We also note a new rubber bumper stuck to the fan's top screw—likely to provide a little extra support for all those heavy new pixels.

    • The additional pixels' weight is actually negligible - in reality the bumper is additional support and cushion for the newer, and better (and more expensive) display assembly.

Add Comment

Image 1/2: ''Unlike'' other iMacs, this one's packing a [http://www.noteloop.com/kit/display/color-space/dci-p3/|DCI-P3|new_window=true] display—one of the first available to consumers—so we're quick to dispatch this shiny metal cover so obviously concealing some delicious chips. Image 2/2: ''Unlike'' other iMacs, this one's packing a [http://www.noteloop.com/kit/display/color-space/dci-p3/|DCI-P3|new_window=true] display—one of the first available to consumers—so we're quick to dispatch this shiny metal cover so obviously concealing some delicious chips.

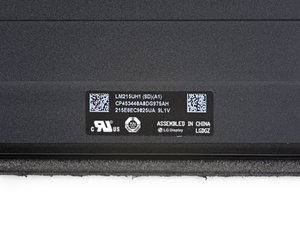

  • This screen was manufactured by LG—Apple's go-to for both standard and super high resolution iMac displays.

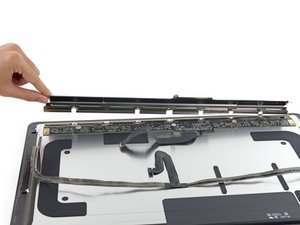

  • Unlike other iMacs, this one's packing a DCI-P3 display—one of the first available to consumers—so we're quick to dispatch this shiny metal cover so obviously concealing some delicious chips.

Add Comment

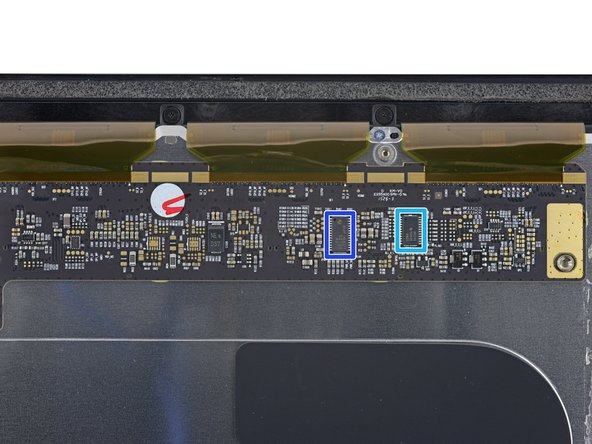

Image 1/3: Texas Instruments [http://www.ti.com/product/tps65168|TPS65168|new_window=true] High Resolution, Fully Programmable LCD Bias Image 2/3: Texas Instruments [http://www.ti.com/product/tps54320|TPS54320|new_window=true] 4.5 V to 17 V Input, 3 A Synchronous Step-Down SWIFT Converter Image 3/3: Texas Instruments [http://www.ti.com/product/tps54218|TPS54218|new_window=true] 4.5 V to 17 V Input, 3 A Synchronous Step-Down SWIFT Converter

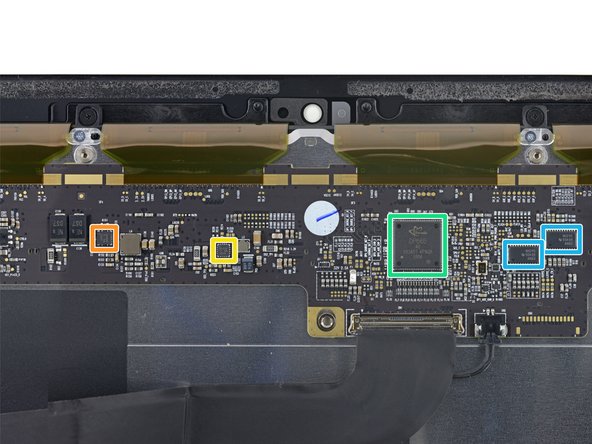

  • Like its siblings, this 4K display has some control hardware tucked away behind the front panel:

    • Texas Instruments TPS65168 High Resolution, Fully Programmable LCD Bias

    • Texas Instruments TPS54320 4.5 V to 17 V Input, 3 A Synchronous Step-Down SWIFT Converter

    • Texas Instruments TPS54218 4.5 V to 17 V Input, 3 A Synchronous Step-Down SWIFT Converter

    • Parade Technologies DP665 LCD Timing Controller (the same found in last generation's 27" 5K model)

      • We assume this is an Apple modified version of the DP663

    • Texas Instruments NH245 55K G4

    • Texas Instruments BUF16821 Programmable Gamma-Voltage Generator and Vcom Calibrator

Add Comment

  • Turning our attention to the interior of the iMac, we find exactly what you would have found in last year's 21.5" iMac—how dull.

    • As usual, Apple sticks to its guns on its hard drive, fan, and speakers—retaining their designs between generations.

    • This model again includes a mediocre 5400 RPM hard drive—maybe they're encouraging us to get that Fusion drive upgrade?

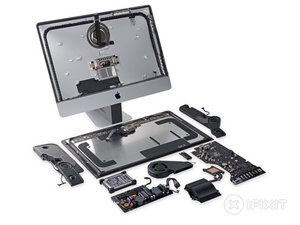

  • To avoid boredom, we've made this step into a montage to fast-forward through these boring bits.

Add Comment

Image 1/2: The following year, our [https://www.ifixit.com/Teardown/iMac+Intel+21.5-Inch+EMC+2638+Teardown/17829#s52529|teardown unit|new_window=true] arrived with an empty slot, ripe for the upgrade. Image 2/2: We're back to empty pads, and the death of any dreams of buying cheap and upgrading on your own. If you want Fusion Drive, you'll have to configure it at purchase, or be handy with a soldering iron.

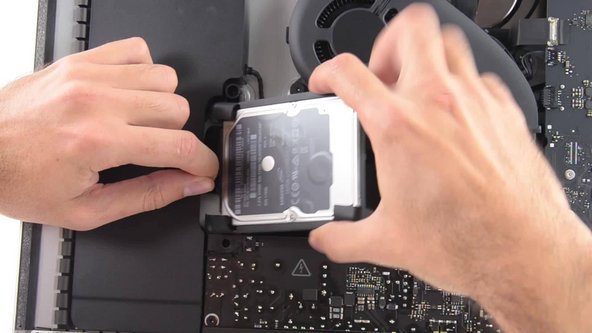

  • Apple is back to their old ways: In 2012, when Apple launched the thin-edged iMac, our base-level iMac had empty solder pads where a Fusion Drive's SSD slot might live.

    • The following year, our teardown unit arrived with an empty slot, ripe for the upgrade.

    • We're back to empty pads, and the death of any dreams of buying cheap and upgrading on your own. If you want Fusion Drive, you'll have to configure it at purchase, or be handy with a soldering iron.

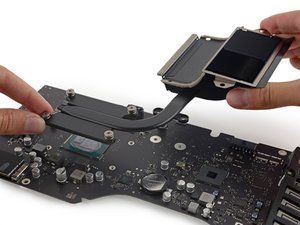

  • The curved heatsink is a bit beefier than we saw earlier this week, and a return to the 2013 design; perhaps helping that new Broadwell CPU find cooler pastures.

Add Comment

Image 1/1: Intel [http://ark.intel.com/products/87715/Intel-Core-i5-5675R-Processor-4M-Cache-up-to-3_60-GHz#@specifications|SR2AJ] Core i5-5675R 3.1 GHz Processor (4M Cache, TurboBoost up to 3.60 GHz) with Intel Iris Pro Graphics 6200
  • This little machine has plenty of brawn, but we're itching to check out its brains too:

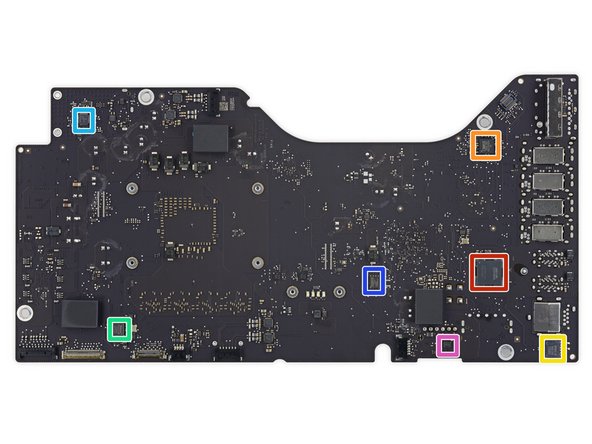

    • Intel SR2AJ Core i5-5675R 3.1 GHz Processor (4M Cache, TurboBoost up to 3.60 GHz) with Intel Iris Pro Graphics 6200

    • Samsung K4E6E304EE-EGCF 16 Gb LPDDR3 1867 MHz SDRAM (4 chips for a total of 8 GB)

    • Broadcom BCM5776 Gigabit Ethernet Controller

    • Texas Instruments LM4FS1EH SMC

    • Texas Instruments HD3SS213 5.4Gbps DisplayPort 1.2a 2:1/1:2 Differential Switch

    • Fairchild FDMF6808N Extra-Small, High-Performance, High-Frequency DrMOS Module (presumably a new iteration of FDMF6708N)

Add Comment

Image 1/1: Cirrus Logic 4208-CRZ Audio Controller
  • Intel DSL5520 Thunderbolt 2 Controller

  • Cirrus Logic 4208-CRZ Audio Controller

  • Delta 8904C-F Filter

  • Vimicro VC0359 Camera Processor

  • Intersil ISL6372CRTZ PWM Controller

  • Winbond 25064FVIQ

  • International Rectifier IRFH3702 30V Single N-Channel HEXFET Power MOSFET

Add Comment

Image 1/2: Cutting the tape to open the iMac isn't too hard (with the right tools), but it must then be replaced to complete any repair. Image 2/2: The RAM is still soldered to the logic board—you're stuck with what you bought.
  • iMac Intel 21.5" Retina 4K Display Repairability Score: 1 out of 10 (10 is easiest to repair)

    • Cutting the tape to open the iMac isn't too hard (with the right tools), but it must then be replaced to complete any repair.

    • The RAM is still soldered to the logic board—you're stuck with what you bought.

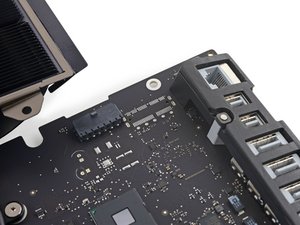

    • The Fusion Drive connector is missing from the logic board, killing all hope of storage hacking.

    • The CPU is soldered to the logic board, and cannot be replaced or upgraded.

    • The glass and Retina Display are fused together, increasing the cost of replacement.

What's the best method or steps to replace the display tape?
