This teardown is not a repair guide. To repair your Motorola W490, use our service manual.

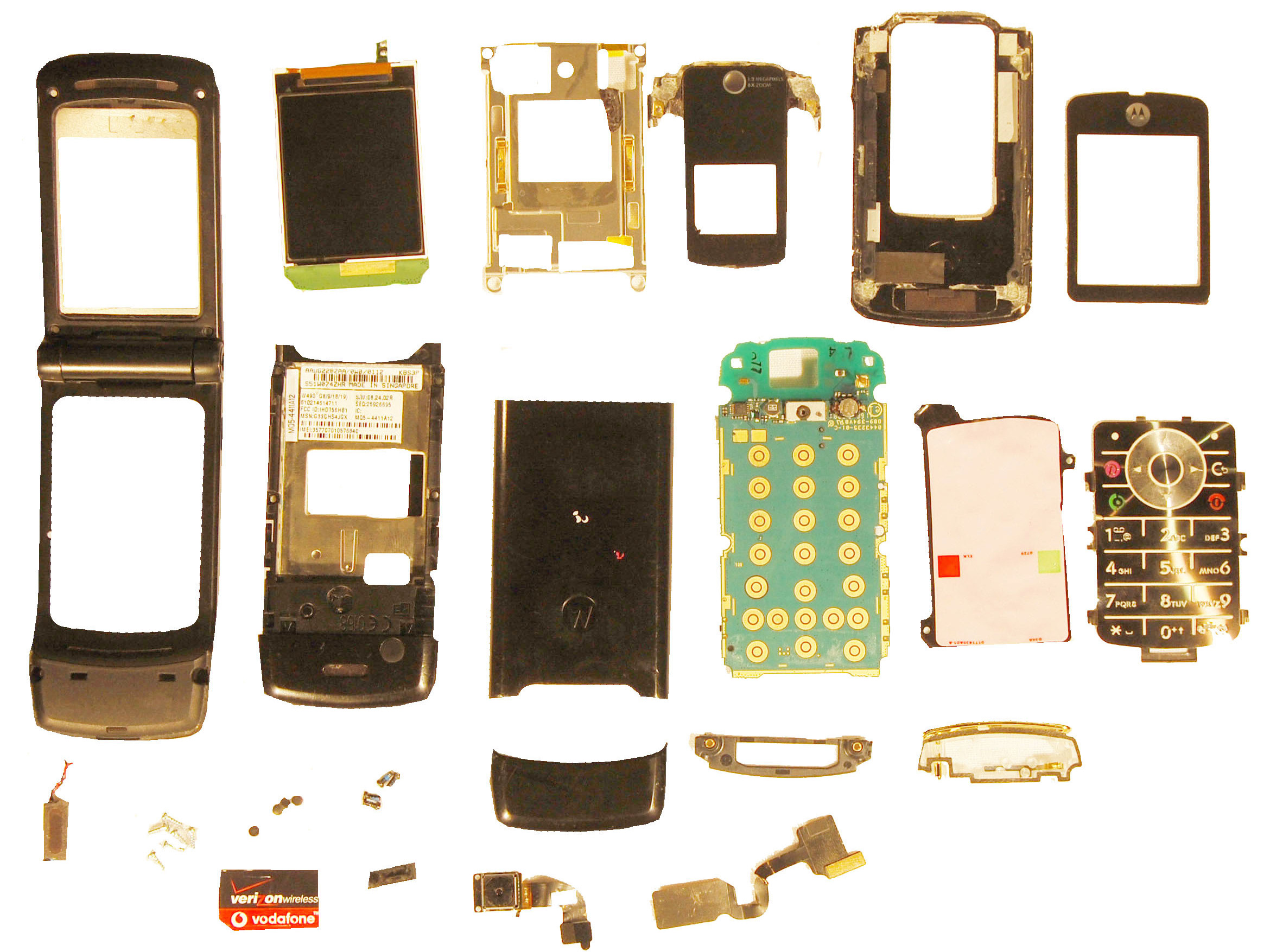

From left to right, top to bottom: Outer Casing, LCD Screen, Upper Metal Frame, Outer LCD cover, Upper Cover, Inner LCD Cover, Lower Metal Casing, Back Casing (Upper), Lower Circuit Board, Keypad, Keypad Membrane, Speaker, Screws, Screw Covers, Back Casing (Lower), Upper Casing Support, Circuit Board Support, SIM Card, USB cover, Camera, Flex Cable

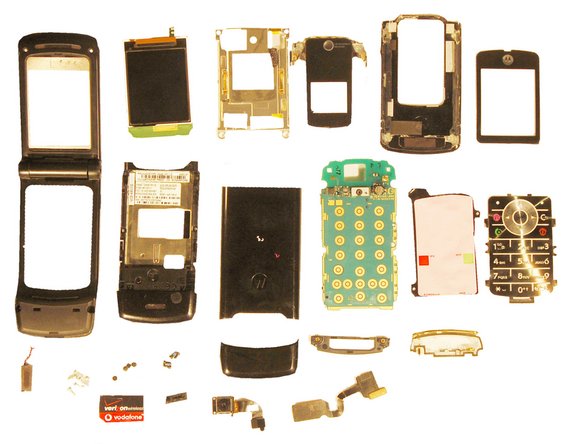

  • From left to right, top to bottom: Outer Casing, LCD Screen, Upper Metal Frame, Outer LCD cover, Upper Cover, Inner LCD Cover, Lower Metal Casing, Back Casing (Upper), Lower Circuit Board, Keypad, Keypad Membrane, Speaker, Screws, Screw Covers, Back Casing (Lower), Upper Casing Support, Circuit Board Support, SIM Card, USB cover, Camera, Flex Cable
