Fourth generation iPhone. Repair is straightforward, but the front glass and LCD must be replaced as a unit. GSM / 8, 16, or 32 GB capacity / Model A1332 / Black and White.

3200 Questions View all

tiny triangular metal washer and 1mm x 2mm x 3mm foam block

Block Image

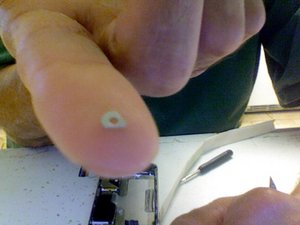

these two pieces seem to come from the speaker assembly area. triangular washer was found magnetized to speaker back and tiny foam block was loose. location not apparent.

Answered! View the answer I have this problem too

Is this a good question?

Score 1

Comments:

I think the photo of the spacer is for verizon model. the part i am refering to is of the same shape but silver metal. At &t model. it seems it would fit at the left side of the speaker(from the back). but does it fit under the motherboard, between the board and the metal threaded boss in the frame or on top under the 1.9 mm screw? Thank you for your help. the foam block is a small piece of black foam that would be a bushing or insulator. thanks you for you help

by

MarkMatsuda,click on the orange tab "Images" on the bottom left of this page, a tab will open on the bottom of this screen, click on upload. Of course you will have to be in "edit" your question. Once uploaded the image will be in the bottom tab. Left click and hold and drag the image into the edit screen of your question. Now I've posted the images you linked to in your comment. Let us know if that is the right image. Good Luck.

by

thanks oldturkey03 for the quick picture upload tutorial =) unfortunately thats the picture i linked to in my comment and not the one MarkMatsuda is looking for. Do you mind if I remove the picture you posted?

by

Of course not :) whatever it takes to help out, is good by me :)

by

Add a comment

5 Answers

Chosen Solution

Hi. The triangular washer is a black spacer that is under the Phillips screw near the vibrator. Here's a picture of the spacer. As for the tiny foam block, are you referring to the outer plastic ring located on top of the rear camera's flash assembly?

Was this answer helpful?

Score 2

Comments:

Well I think i found the piece of foam you're talking about. If you take a look at the picture of the speaker assembly, more specifically on the lower left corner, you'll notice this rectangular foam block. It looks like a brick. Is that it?

by

yes walter this is the block. any idea about the pie slice metalic washer/spacer/contact?

by

Well I'm glad we identified at least one of the components. Unfortunately I don't recall any triangular metallic spacer in the iPhone 4 GSM. Can you take a picture of the spacer?

by

yes, but how do i post the photo to you. it seems to be the same size as the black piece in the Verizon model. All the photos and videos I am able to find show nothing under the 1.9 mm screw at teh bottom of the mother board under the ribbon connector bottom left. triangular with a hole slightly offset from center

by

added a photo, it must fit under the screw as a contact plate between the screw head and the 1/2 circle brass contact point on the MB.

by

Show 2 more comments

Add a comment
This answer was originally to another question.

My advice, if your iPhone still works then who cares! There are small parts like this throughout the phone that don't actually do anything and are just failsafe's if something does stop working. 99% of the time they are never needed :)

Was this answer helpful?

Score 0
Add a comment
This answer was originally to another question.

I too have been unable to find where this part actually comes from.

My disassembly of the iphone 4 was all going well until i had to turn the frame over to seperate the screen from the body - that's when the piece fell out. I didnt even notice it in the phone before it fell.

Has anyone worked out where and what this is used for?

Block Image

Was this answer helpful?

Score 0
Add a comment
This answer was originally to another question.

I think this part is located under the 1.9 mm screw holding the bottom of the Mother board down. To the left side (from back)just above the speaker assembly. I am not certain but I believe its to aid contact of the screw to the Motherboard. the pointed side goes toward the outside frame and the the narrowest side to the bottom of the phone. The screw makes contact without it, so it will still work.

Was this answer helpful?

Score 0
Add a comment
This answer was originally to another question.

I've just found the exact same washer during re-assembly of a GSM iPhone 4. I've done dozens of these and never come across this washer before. It's not the plastic washer used near the vibrator on a 4S, this is pie shaped metal.

It was stuck to the adhesive where the battery sits but musty have become dislodged from someplace, but where??

Was this answer helpful?

Score 0
Add a comment

Add your answer

MarkMatsuda will be eternally grateful.
