Edit Step 1 Oculus Rift Development Kit 2 Teardown  ¶

Image #1

Edit Step 1 Oculus Rift Development Kit 2 Teardown  ¶

  • The folks at Oculus VR have had a busy year. Their hard work culminates in an amazing bit of technology, the Oculus Rift Development Kit 2. Features include:

    • Accelerometer, gyroscope, and magnetometer with an update rate of 1000 Hz

    • Positional tracking via external camera with near-infrared CMOS sensor

    • Low-persistence 5.7" Super AMOLED display with a resolution of 960 x 1080 per eye

    • Built-In latency tester

    • 100° field of view (a much discussed change from DK1)

  • All well and good, but DK1 ran away with an impressive 9/10 repairability score when it hit our teardown table in the Spring of 2013. Here's hoping that score holds as the Rift evolves to its newest incarnation. Let's see what's what!

Edit Step 2  ¶

Image #1

Edit Step 2  ¶

  • The Oculus Rift Development Kit 2 wouldn't be a complete piece of developer hardware without its assortment of cables, adapters, and accessories.

  • Cable management is a must when you've got a cluster of cables like this. The DK2 features a cable hub that combines USB 2.0, HDMI, DC power (optional), and a Sync cable for the positional tracker.

  • Notably absent from this array of accessories is the control box. It will not be missed, but we're curious to see what other hardware alterations have enabled this welcome sleekification.

Edit Step 3  ¶

Image #1

Edit Step 3  ¶

  • We have an ocular face off! Development kits 1 and 2 have a staring contest, giving us time for a quick comparison.

  • The first thing we notice is that DK2 shows some noticeable streamlining in size and shape.

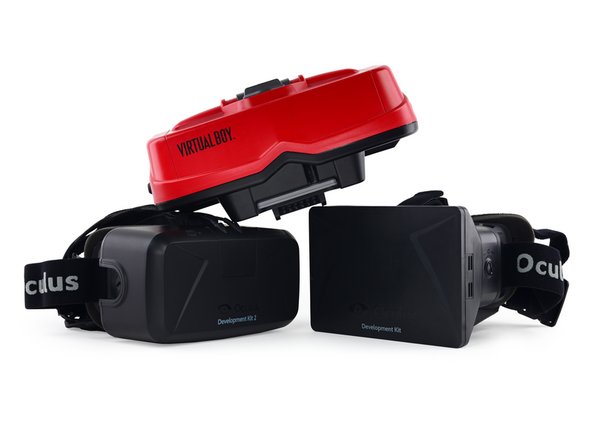

  • Without warning, the forefather of VR headsets crashes the party—the Virtual Boy.

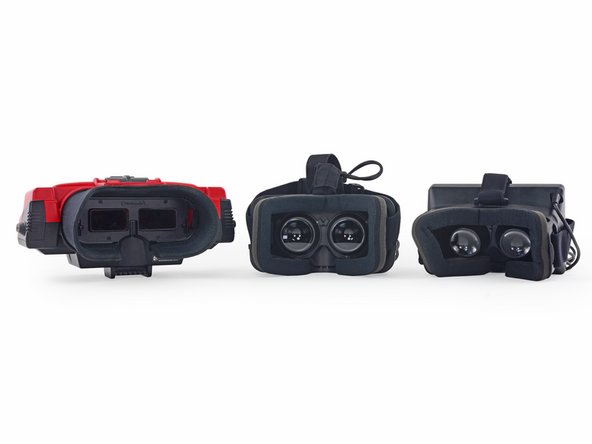

  • It's a fight to the virtual death! The contenders weigh in at:

    • 896 g for the Virtual Boy, making it the heavyweight champ (although, to be fair, this was never supposed to hang off of your face)

    • 453 g for the newcomer to the ring, the DK2

    • 395 g for last year's lightweight fighter, the original Rift

Edit Step 4  ¶

Image #1

Edit Step 4  ¶

  • The DK2 includes a brand-spanking-new positional tracking unit. Essentially, it's a custom-made external IR camera, specially designed to work with the new Development Kit.

    • According to Oculus VR, "it is not possible to substitute an old webcam, nor is it possible to retrofit the tracking to the original Development Kit."

  • The Oculus Rift DK2 retains its 360° orientation tracking, with no camera needed—just like the first version of the Oculus Rift. But to get the added benefit of positional tracking, you'll need to be in the external IR camera's field of view.

    • Positional tracking does what it says on the tin: it tracks the position of your head in 3D space, relative to the sensor. When you lean in to examine a virtual object, the environment zooms in to translate your movement, adding another layer of interactivity and realism.

Edit Step 5  ¶

Image #1

Edit Step 5  ¶

  • We love our IR camera. Any opportunity to capture that exciting invisible glow, and we're all over it. So when we heard that the DK2 was going to incorporate the IR LED array of the Crystal Cove prototype, but with the LEDs on the inside, we knew it was our camera's time to (catch the) shine once again.

  • With the DK2 fully hooked up and running its demo software, the positional tracking camera starts tracking—with the help of light totally invisible to our eyes, blasted through the black plastic of the front of the headset.

  • MORE DOTS.

Edit Step 6  ¶

Image #1

Edit Step 6  ¶

  • Tucked away under a rubber cover in the front, we find the USB accessory port and an additional sync cable port.

  • Time to de-face the Oculus: we remove several Phillips #0 screws securing the device itself to its adjustable headband.

  • Within the faceplate, we find two new and improved lenses. The lenses have increased in size to accommodate a wider IPD (interpupillary distance) range.

Edit Step 7  ¶

Edit Step 7  ¶

  • After 150 years of development in VR, we have finally found a way to make the Oculus even more realistic... It's like everything's right in front of you, in full 3D!

  • If you own a DK2, using it to watch this video could result in an irreversible recursive cognitive paradox.

Edit Step 8  ¶

Image #1

Edit Step 8  ¶

  • Thankfully, removing the interchangeable lenses remains a straightforward affair: twist and lift.

  • For those gamers who sport geek-chic glasses, the Oculus team has included different eyecups of varying focal lengths, just like it did in the Oculus VR, though this isn't a perfect solution.

  • With the lenses removed, there is no end to the light-bending experiments we can perform.

    • Naturally we took the opportunity to trap fellow tech writers in a tiny upside-down world! Science is awesome.

Edit Step 9  ¶

Image #1

Edit Step 9  ¶

  • This svelte cable cover slides out with nary a complaint, making the Mini USB and HDMI cables surprisingly easy to disconnect.

  • In terms of a model number, these FCC labels yield nothing but "Rift DK2."

    • Simplicity: we can haz it.

Edit Step 10  ¶

Image #1

Edit Step 10  ¶

  • Keeping up with the Oculus news recently, we figured there might be something lurking within the HDMI cable, just like with Apple's Thunderbolt cable from awhile back.

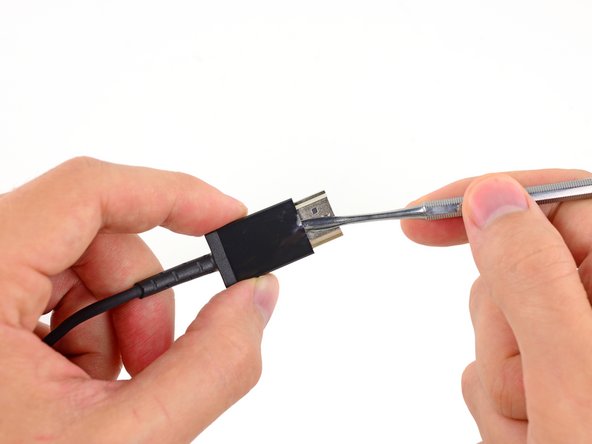

  • With a couple flicks of our metal spudger, we find we were right—a hidden IC presents itself!

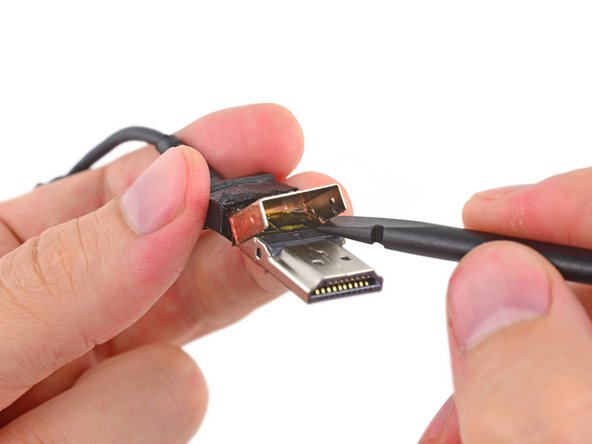

  • We find the Spectra7 VR7100 processor buried under what seems to be a thick encasing of glue.

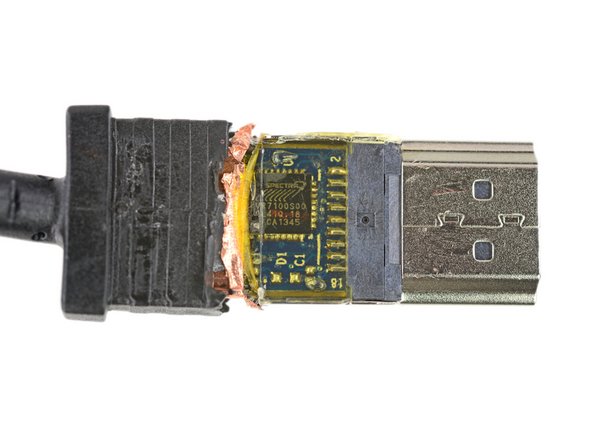

    • According to their product brief, the little doohickey "reduces size and weight of HDMI copper interconnects..." and "supports video formats up to 4K 60p" — hot stuff!

    • Well now we know why the cables got so much thinner when compared to the DK1.

Edit Step 11  ¶

Image #1

Edit Step 11  ¶

  • Let's pop open the slick new cable hub and find out what's inside:

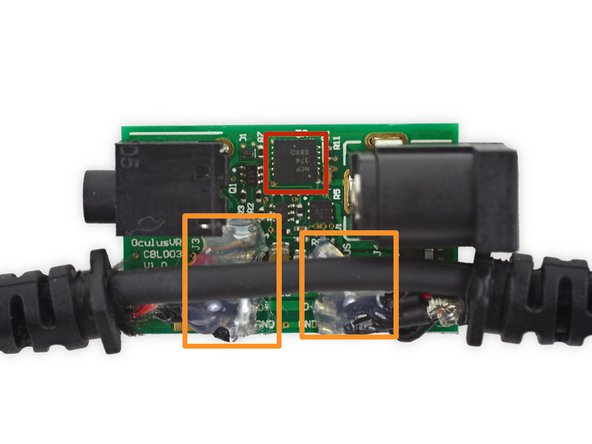

    • ON Semiconductor NCP 374 overvoltage protection device with load switch function

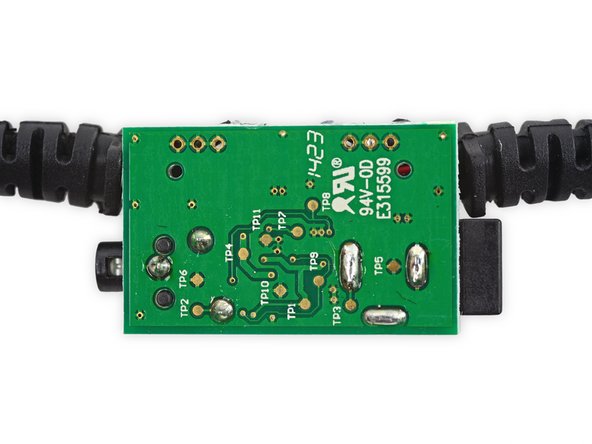

    • You can sleep soundly knowing that those cables aren't going anywhere, because Oculus didn't skimp on the globs of hot glue on the inside of the cable hub.

Edit Step 12  ¶

Image #1

Edit Step 12  ¶

  • We quickly dispatch some serious rubber plugs and go Wolverine all over the screws they protect.

  • With the screws dispatched, we slide the eyewear enclosure out of the front casing.

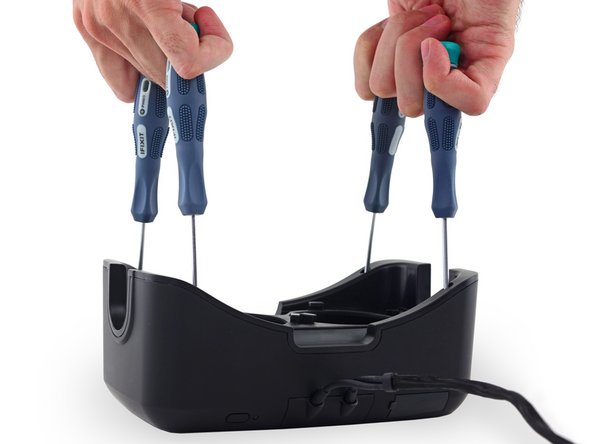

  • Hold onto your hamburgers, because here comes the first look at the inside of the Oculus Rift Development Kit 2.

Edit Step 13  ¶

Image #1

Edit Step 13  ¶

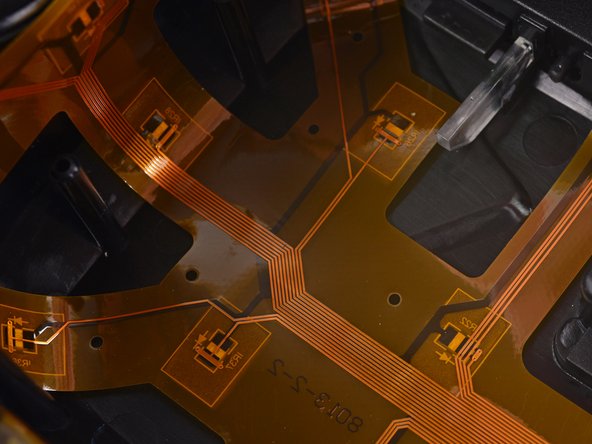

  • Opening the treasure chest a bit further, we get a glimpse of a whole entire motherboard, not the tiny boards of yore.

  • But what's all this orange cabling? Looks like we found the many sources of those many, many IR LEDs.

  • There are eleventy nine forty of them, artfully connected via a ribbon cable designed by space elves.

    • We can neither confirm nor deny the existence of space elves.

Edit Step 14  ¶

Edit Step 14  ¶

  • Here at iFixit, we are unabashed lovers of screws—they epitomize everything that's good about repair. Which is probably why Oculus VR sneaked this maddeningly uncooperative non-screw in here, just to mess with us.

  • Actually, this could just be a minor manufacturing snafu. Apart from the lack of threads, this little guy is identical to two other (perfectly ordinary) Phillips screws nearby.

  • If you happen to find yourself disassembling a DK2 in the future, do let us know—we want to compare notes (and steal your screws).

Edit Step 15  ¶

Image #1

Edit Step 15  ¶

  • We manage to liberate the motherboard from the DK2's eyewear enclosure with ease.

  • This motherboard is a major change from the previous incarnation of the Oculus Rift. All of the device's guts are now packed onto a single board, eliminating the need for an external control box.

    • We've got to hand it to Oculus, because they've really stepped up their motherboard design. It's easy to remove, and quite a looker as well. We'll have to see if this Oculus design can stand the test of time and make it into the consumer model.

Edit Step 16  ¶

Image #1

Edit Step 16  ¶

  • These are the ICs that make virtual reality a possibility:

    • Toshiba TC358779XBG HDMI Interface Bridge

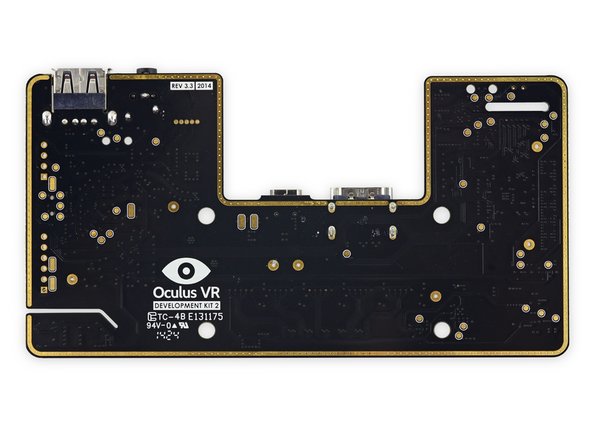

    • STMicroelectronics STP16CPC26 Low Voltage 16-Bit Constant Current LED Sink Driver

    • STMicroelectronics STM32L100RB Ultra-low-power 32-bit Value Line ARM Cortex-M3 MCU with 128 Kbytes Flash, 32 MHz CPU, LCD, USB

    • Cypress Semiconductor CY7C65632 Very Low Power USB 2.0 Hub Controller

    • STMicroelectronics ST1S31 3A Step-down DC-DC

    • Invensense MPU-6500 Six-Axis (Gyro + Accelerometer) MEMS MotionTracking

    • Texas Instruments TPS65632A Triple Output AMOLED Display Power Supply

Edit Step 17  ¶

Image #1

Edit Step 17  ¶

  • With the motherboard out of the way, we're ready to extract the DK2's display.

  • The display has a rubber case housed in a plastic backing. Our spidey senses start tingling when we peel off the rubber case...

  • The display is—drumroll please—literally the front panel of a Samsung Galaxy Note 3.

    • This seems to make economical sense, since Oculus is working to ship something like 45,000 DK2s—a goodly number for a mid-development prototype, but certainly not enough to warrant a fully custom display. It looks like Oculus is already taking advantage of their partnership with Samsung.

Edit Step 18  ¶

Image #1

Edit Step 18  ¶

  • The Galaxy Note 3 display panel that Oculus is using features a 5.7" Super AMOLED 1080p screen.

  • We take a closer look at the display panel, and find that Oculus even left the Synaptics S5050A touchscreen controller intact.

    • Maybe they're planning on releasing an eyelash touchscreen controller add-on later.

  • Oculus claims that the DK2 display is a low-persistence OLED screen capable of a 75 Hz refresh rate. This means that Oculus is overclocking the Note 3 display panel from its stock 60 Hz, which results in smoother motion.

Edit Step 19  ¶

Image #1

Edit Step 19  ¶

  • We may have exhausted the headset's goodies, but this teardown ain't over yet. We turn your attention now to the positional tracking camera.

  • The DK2 positional tracker's stand has several articulation joints and a tripod mount so you know it will always be there for you, bending over backward to help.

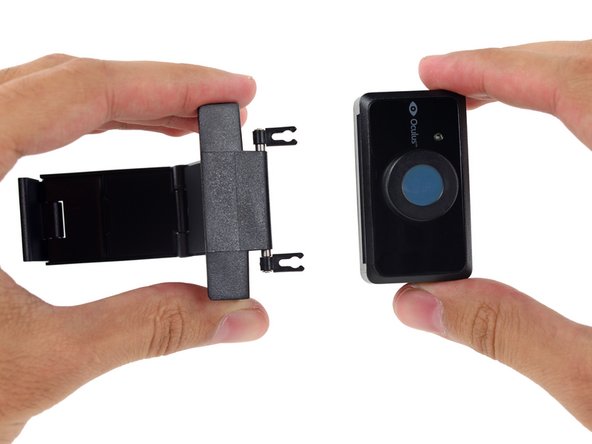

  • The positional camera itself is attached to its stand with two small clips. Once detached, we're free to crack it open to find the real goodies inside.

Edit Step 20  ¶

Image #1

Edit Step 20  ¶

  • We take off a filter that we guess blocks visible light, allowing only IR light into the camera.

  • We use some high-tech hacking to prove our theory: tape, a cellphone, and a remote control.

  • Voilà! Visible light filtered out, IR beam clearly shining through. Visual victory!

Edit Step 21  ¶

Image #1

Edit Step 21  ¶

  • A sneaky cover plate hides a couple screws on the positional tracker's body, but our opening pick quickly sniffs them out.

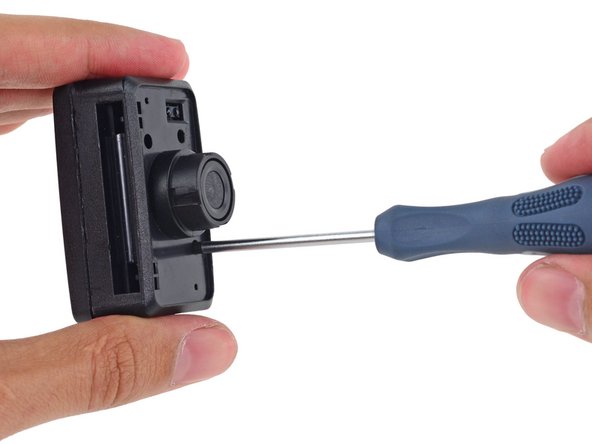

  • The promising seams along the side are not for prying—ignore them. Ignore them well.

Edit Step 22  ¶

Image #1

Edit Step 22  ¶

  • Once inside, the positional camera's motherboard and lens assembly are removed with ease.

  • We quickly dispense with two more screws, and then pop the lens assembly off the motherboard.

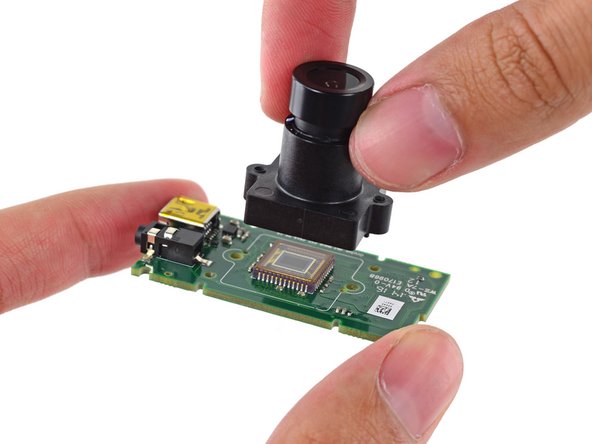

  • After playing around with the positional camera lens, we conclude that it's a wide angle lens. This allows the positional camera to see more IR LEDs at once, expanding its tracking abilities.

Edit Step 23  ¶

Image #1

Edit Step 23  ¶

  • Upon freeing this baby motherboard from its enclosure, we spy the positional camera's CMOS image sensor.

  • There are several ICs on the positional camera motherboard:

    • Microchip Technology 24AA128 I2C CMOS Serial EEPROM

    • SIWARD 12.0 4C Crystal Oscillator

    • S033 HVG 107Y

    • Etron Technology eSP570 webcam controller

Edit Step 24  ¶

Image #1

Edit Step 24  ¶

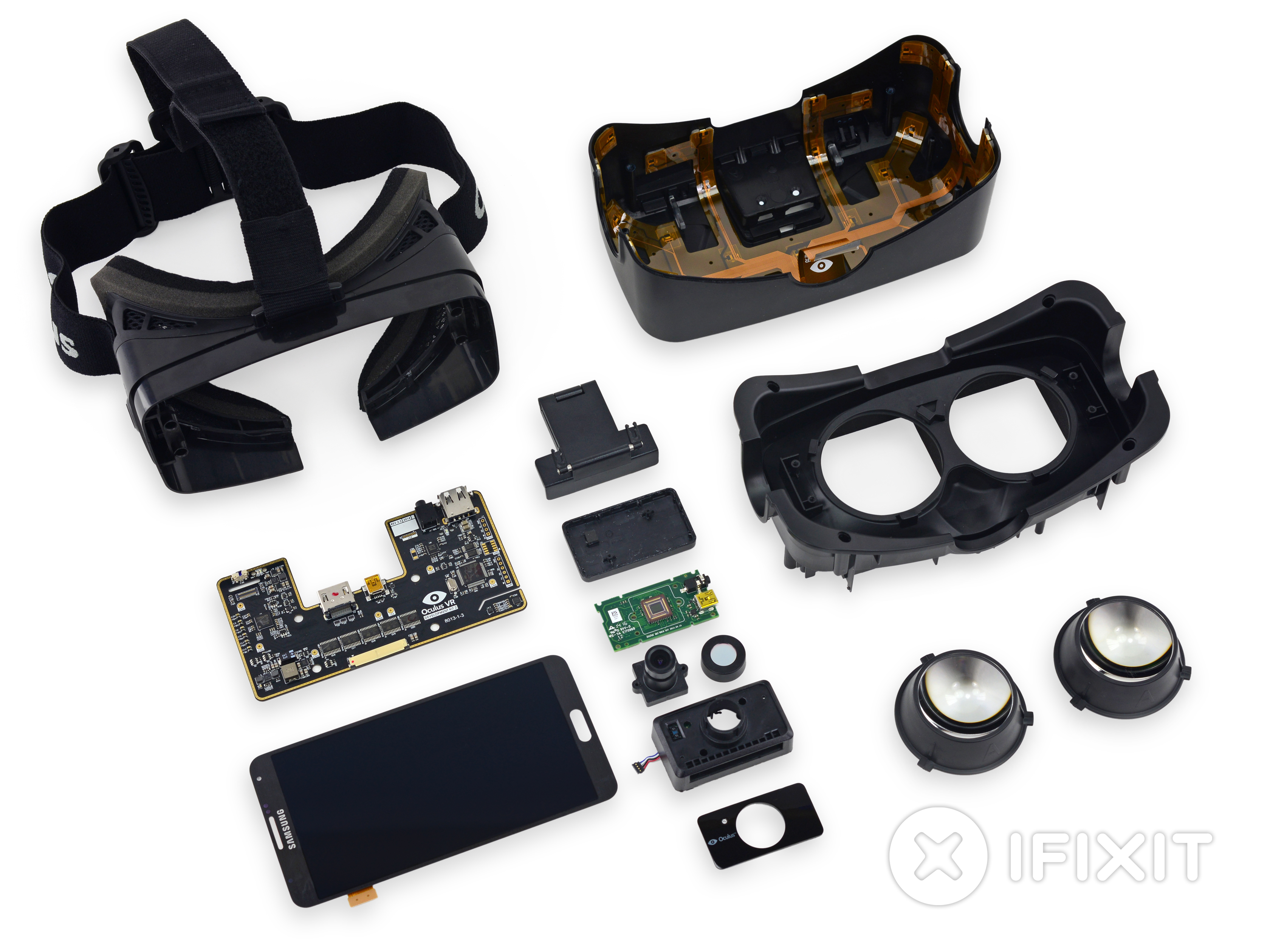

  • The Oculus Rift Development Kit 2 Repairability Score: 9 out of 10 (10 is best)

    • Given that the Rift is still a beta product, this is still a preliminary score—but things are looking good, and we hope the consumer version is just as repairable.

  • Standard Phillips #0 screws are used in both the headset and positional tracker, making it a cinch to open them.

  • Cable management is much improved from the original development kit, and the elimination of the control box makes for a simpler, more streamlined device.

  • The use of a common smartphone display means that replacement parts are readily available!

  • Getting into the positional tracker without a repair guide is a bit of a doozy. Prying around the edge won't help you here, but a thin tool in the front will.
