Introduction

This is the full bill of materials (BOM) for the 2012 MacBook Pro 15" with Retina Display.

Image 1/1:

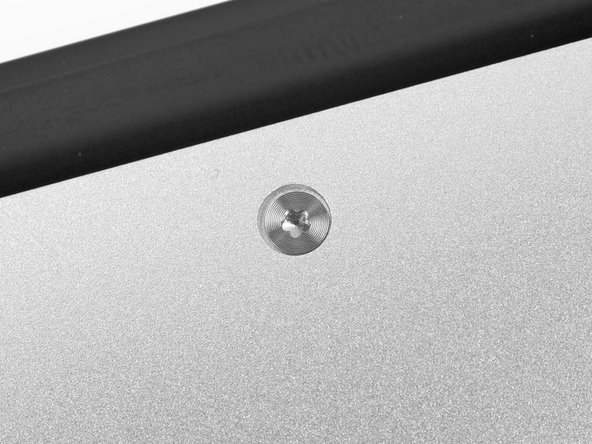

  • Pentalobe screw - quantity 10

Add Comment

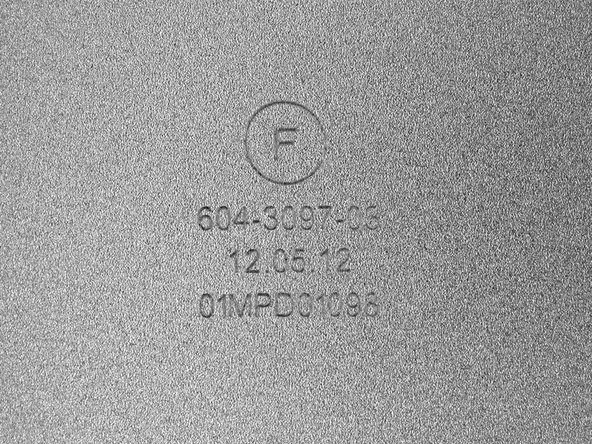

Image 1/2: 604-3097-03 12.05.12 01MPD01098

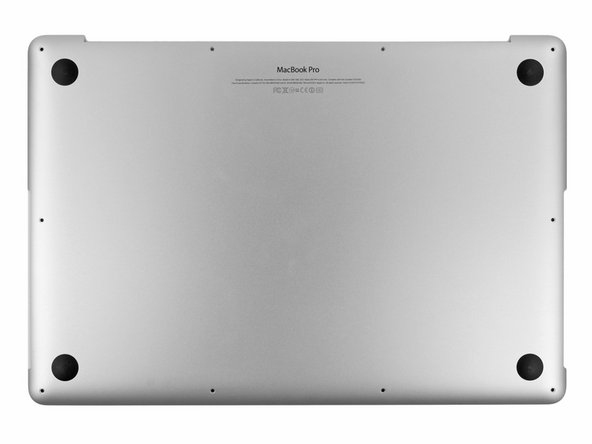

  • Lower case - quantity 1

  • 604-3097-03 12.05.12 01MPD01098

Add Comment

Image 1/2: 313-9739-15 2012.05.29 02VPN01076

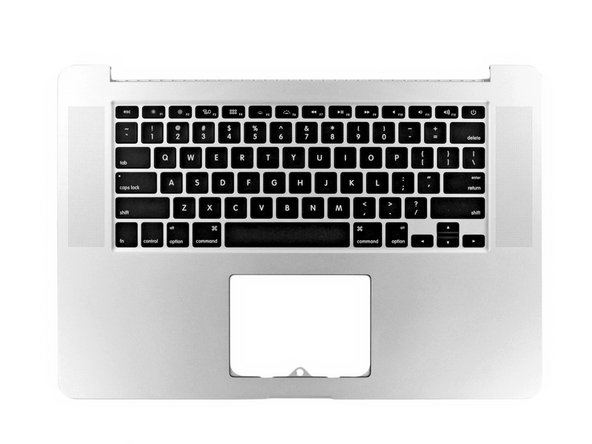

  • Upper case - quantity 1

  • 313-9739-15 2012.05.29 02VPN01076

Add Comment

Image 1/2: 604 3110 05 12.05.24 01MPN04722
  • Display assembly rear case - quantity 1

  • 604 3110 05 12.05.24 01MPN04722

Add Comment

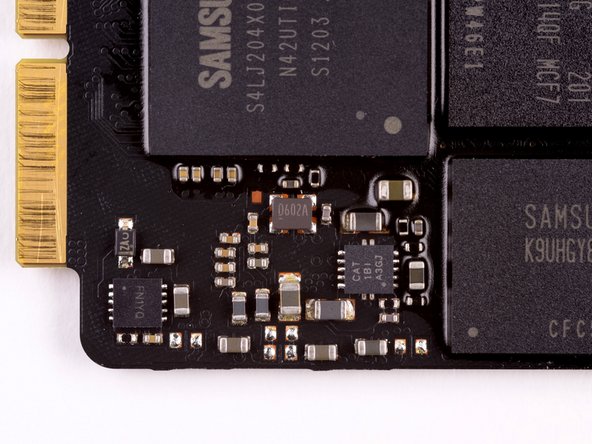

Image 1/3: Samsung S4LJ204X01 - quantity 1

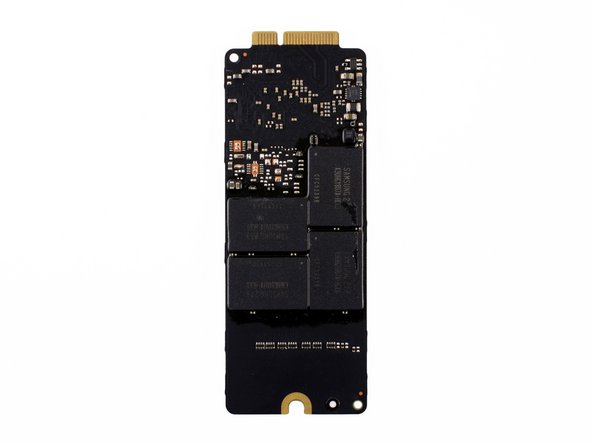

  • Flash memory module - quantity 1

    • Samsung S4LJ204X01 - quantity 1

    • Samsung 213 K9UHGY8U7A - quantity 8

    • Samsung 201 K4T263140F - quantity 1

    • CAT 1BI A3GJ - quantity 1

    • D602A - quantity 1

    • FN1YQ - quantity 1

Add Comment

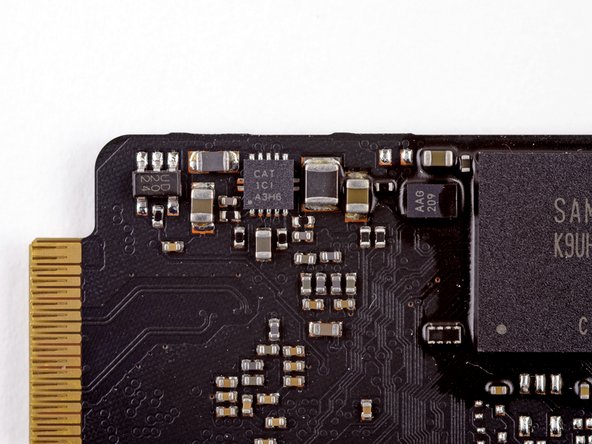

Image 1/3: AAG 209 VC - quantity 1
  • AAG 205 VC - quantity 1

  • AAG 209 VC - quantity 1

  • Samsung 213 K9UHGY8U7A - quantity 4

  • CAT 1C1 A3H6 - quantity 1

  • UD 20 24 - quantity 1

  • T5 Torx SSD screw - quantity 1

Add Comment

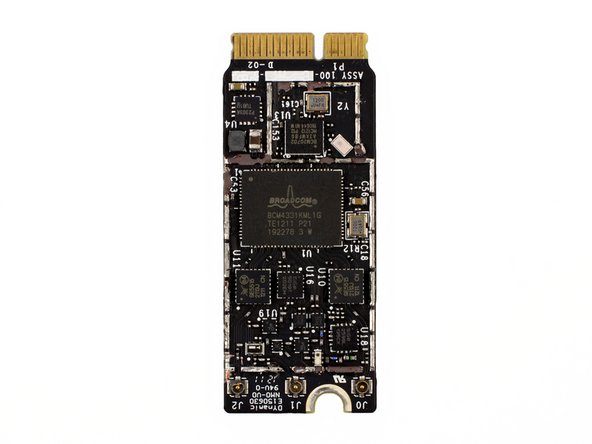

Image 1/1: Broadcom BCM4331 - quantity 1
  • AirPort/Bluetooth board - quantity 1

    • Broadcom BCM4331 - quantity 1

    • Broadcom BCM20702 - quantity 1

    • Skyworks SE5515 - quantity 2

    • SiGe 5019T - quantity 1

    • SiGe 2598L - quantity 1

    • Skyworks SKY3 5404 - quantity 1

Add Comment

Image 1/2: T200 UmF8 - quantity 1
  • Skyworks SKY2 5405 - quantity 1

  • T200 UmF8 - quantity 1

  • T200 UqA9 - quantity 1

  • P2303A - quantity 1

  • S31 - quantity 1

  • S70 - quantity 1

  • K - quantity 1

  • T5 Torx AirPort screw - quantity 1

Add Comment

Image 1/3: 66A H1 2FS - quantity 1
  • V51L 2130A - quantity 1

  • 66A H1 2FS - quantity 1

  • 23YCUN - quantity 2

  • 216I CC - quantity 4

Add Comment

Image 1/3: N1 - quantity 1
  • Z2 1209 - quantity 2

  • N1 - quantity 1

  • DP - quantity 1

Add Comment

Image 1/1: Broadcom BCM57100 - quantity 1
  • I/O board - quantity 1

    • Broadcom BCM57100 - quantity 1

    • Parade PS8401 - quantity 1

    • 2557 TI 2138 - quantity 1

    • J8jr - quantity 1

    • 2553 - quantity 1

    • Texas Instruments 21 2065 - quantity 1

    • T250 Vq22 - quantity 1

Add Comment

Image 1/3: FTF 1N1 A - quantity 1
  • 22PFL5 - quantity 2

  • FTF 1N1 A - quantity 1

  • 0502N - quantity 1

  • F54 - quantity 1

  • DP - quantity 1

  • A00G - quantity 1

  • T5 Torx I/O board screw - quantity 2

Add Comment

Image 1/2:
  • I/O board cable - quantity 1

Add Comment

Image 1/1:
  • HDMI data transfer cable - quantity 1

Add Comment

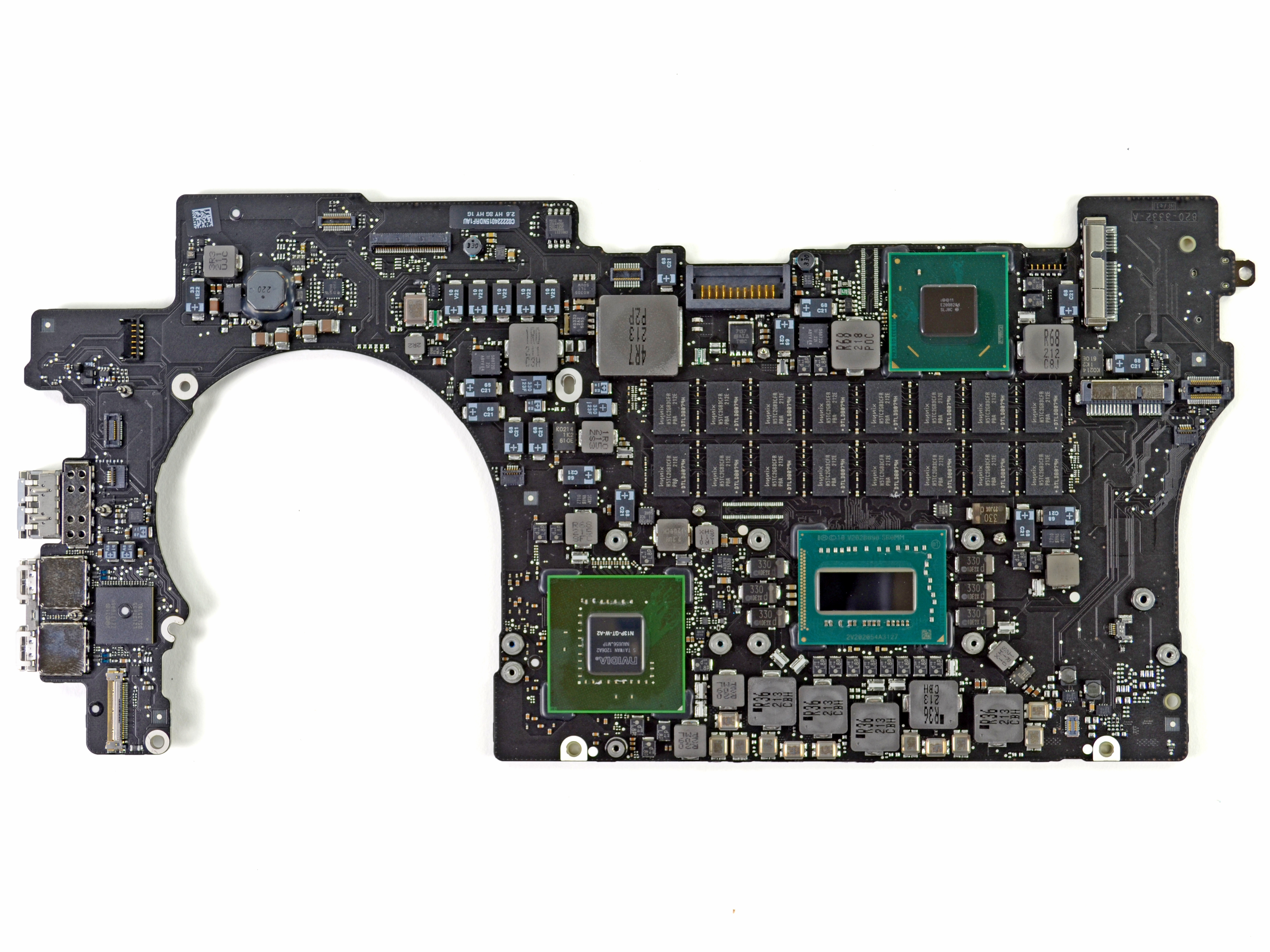

Image 1/1: Intel Core-i7 3720QM 2.6 GHz processor (Turbo Boost up to 3.6 GHz) with Intel Graphics HD 4000 - quantity 1
  • NVIDIA GeForce GT 650M GPU - quantity 1

  • Intel Core-i7 3720QM 2.6 GHz processor (Turbo Boost up to 3.6 GHz) with Intel Graphics HD 4000 - quantity 1

  • Hynix H5TC2G83CFR DDR3L SDRAM - quantity 16

  • Intel DSL3510L Thunderbolt controller - quantity 1

  • Intel E208B284 Platform Controller Hub - quantity 1

  • 7137 SAIΔ T18 - quantity 1

  • 3301DE2X - quantity 6

  • LCPG 221D - quantity 2

Add Comment

Image 1/1: KO214 1K2 61OE - quantity 2
  • Z710BBN∆ W22C - quantity 1

  • KO214 1K2 61OE - quantity 2

  • 58872D T1 22I A8YV E4 -quantity 2

  • Infineon 4AIRZR F213JB - quantity 1

  • 58873D TI ICE SGKE - quantity 1

  • MXIC 25L6 406E M2I-12GF 3J993600 L121083 - quantity 1

  • National Semiconductor VM21AB 45-EXTJ - quantity 1

Add Comment

Image 1/1: 68 C21 - quantity 13
  • 10 V22 - quantity 5

  • 68 C21 - quantity 13

  • 331 E22 - quantity 1

  • 33 0I23F - quantity 2

  • 33 1E22 - quantity 1

  • R36 213 CBH - quantity 5

  • R68 218 P0C - quantity 2

  • 4R7 213 P2P - quantity 1

Add Comment

Image 1/1: 330 22J0K - quantity 1
  • L8P - quantity 21

  • 330 22J0K - quantity 1

  • R20 209 PML - quantity 2

  • 1R0 211 SHX - quantity 2

  • 2710 - quantity 2

  • 330 - quantity 1

  • 2R2 - quantity 1

  • 220 - quantity 1

Add Comment

Image 1/1: 2.2W 1209CX - quantity 1
  • 3R3 211 UJC - quantity 1

  • 2.2W 1209CX - quantity 1

  • J8jr - quantity 1

  • LCPG 221D - quantity 2

  • Intersil 8014AIRZR - quantity 1

  • BNW1YK - quantity 2

  • 09BF1MLH - quantity 1

  • LDPR 194L - quantity 1

Add Comment

Image 1/1: AG∆W22B - quantity 1
  • 638Z0 - quantity 1

  • AG∆W22B - quantity 1

  • AV0 - quantity 1

  • 23 C30 - quantity 1

  • 470 Ω resistor - quantity 1

  • 100 Ω resistor - quantity 1

  • R005 - quantity 1

  • 1010-SMMC-1209 - quantity 3

Add Comment

Image 1/1: 1011 5KT0 1208 - quantity 7
  • 1014 55WY 1206 - quantity 1

  • 1011 5KT0 1208 - quantity 7

Add Comment

Image 1/1: Hynix H5GQ2H24AFR - quantity 4
  • Hynix H5TC2G83CFR - quantity 16

  • Hynix H5GQ2H24AFR - quantity 4

  • Texas Instruments Stellaris LM4FS1AH - quantity 1

  • Renesas R4F2113 H8S series - quantity 1

  • Maxim MAX15119 - quantity 1

  • Cypress Semiconductor CY8C24794-24L - quantity 1

  • TL020403A 6352 102 Z8D202 - quantity 1

  • SMSC USB2512B - quantity 1

Add Comment

Image 1/1: HD3SS212 24KKW R - quantity 1
  • Infineon 6288C HRTZ F207CVT - quantity 1

  • HD3SS212 24KKW R - quantity 1

  • ZTB TI 22I AVG5 - quantity 2

  • R4F2113 XLG A02 AD01359 1216JPN - quantity 1

  • TPS 51980 TI 21K CSD2 - quantity 1

  • Infineon 9AHRTZ F207WW - quantity 1

  • 3957 B62004 - quantity 1

  • CD3210 A0 T1 231 AHHY - quantity 1

Add Comment

Image 1/1: E7 Cn - quantity 4
  • 68 C21 - quantity 16

  • E7 Cn - quantity 4

  • J8eb - quantity 3

  • jSq - quantity 8

  • jSn - quantity 1

  • R005 - quantity 1

  • 100 - quantity 1

  • BMH IAX - quantity 2

Add Comment

Image 1/1: BQZKTI K1C4P - quantity 1
  • GAW SMH - quantity 1

  • BQZKTI K1C4P - quantity 1

  • 3349 113G - quantity 2

  • 8OB2CBY - quantity 1

  • 27 000 24111 - quantity 1

  • ZTBTI 221AVG5 - quantity 2

  • VA - quantity 1

  • GAV SP9 - quantity 2

Add Comment

Image 1/1: +AIH 210 - quantity 1
  • P8Z3 - quantity 1

  • +AIH 210 - quantity 1

  • Y2T 201 - quantity 1

  • 0134T E2424 - quantity 1

  • 1484AV 24006 - quantity 1

  • KLD23 3Z014 - quantity 1

  • XDDL - quantity 1

  • SU - quantity 1

Add Comment

Image 1/1: V08 - quantity 3
  • BNW1Y2 - quantity 3

  • V08 - quantity 3

  • KABZ4 - quantity 5

  • 51916 T1

  • BFW2EAB - quantity 1

  • 100 - quantity 2

  • 7615 BAY - quantity 1

  • DP - quantity 2

Add Comment

Image 1/1: a2 - quantity 1
  • D1 - quantity 1

  • a2 - quantity 1

  • BQZ T1 K 1C4P - quantity 1

  • 82589AH - quantity 1

  • CFT - quantity 1

Add Comment

Image 1/1:
  • T5 Torx logic board screw - quantity 4

Add Comment

Image 1/1:
  • Logic board heat sink - quantity 1

Add Comment

Image 1/3: T5 Torx heat sink screw - quantity 1 (silver)
  • T5 Torx heat sink screw - quantity 2 (black)

  • T5 Torx heat sink screw - quantity 1 (silver)

  • T5 Torx heat sink screw - quantity 1 (silver)

Add Comment

Image 1/2: T5 Torx heat sink screw - quantity 6
  • Heat sink grommet - quantity 1

  • T5 Torx heat sink screw - quantity 6

Add Comment

Image 1/2: Right fan - quantity 1
  • Left fan - quantity 1

  • Right fan - quantity 1

  • Delta Electronics, Inc. KDB06105HC-HM00 - quantity 1

Add Comment

Image 1/3: T5 Torx fan screw - quantity 2
  • T5 Torx fan screw - quantity 2

  • T5 Torx fan screw - quantity 2

  • T5 Torx fan screw - quantity 2

Add Comment

Image 1/1: Right fan duct - quantity 1
  • Left fan duct - quantity 1

  • Right fan duct - quantity 1

Add Comment

Image 1/3: Right speaker assembly - quantity 1
  • Left speaker assembly - quantity 1

  • Right speaker assembly - quantity 1

Add Comment

Image 1/3: T5 Torx speaker screw - quantity 2
  • T5 Torx speaker screw - quantity 2

  • T5 Torx speaker screw - quantity 2

  • T5 Torx speaker screw - quantity 2

Add Comment

Image 1/1: S885 1332 - quantity 2
  • Dual microphone assembly - quantity 1

    • S885 1332 - quantity 2

Add Comment

Image 1/3: TUH - quantity 1
  • Headphone jack -quantity 1

    • TUH - quantity 1

  • T5 Torx headphone jack screw - quantity 2

Add Comment

Image 1/3: P7 transistor - quantity 1
  • MagSafe 2 port - quantity 1

    • P7 transistor - quantity 1

  • T5 Torx MagSafe 2 board screw - quantity 2

Add Comment

Image 1/1:
  • Antennna/FaceTime camera cable routing guide - quantity 1

Add Comment

Image 1/2: T5 Torx battery board screw - quantity 2
  • Main battery - quantity 1

  • T5 Torx battery board screw - quantity 2

Add Comment

Image 1/2: Parade Technologies 741B 6A2E11 - quantity 4
  • Texas Instruments BQ20Z451 - quantity 1

  • Parade Technologies 741B 6A2E11 - quantity 4

  • 15AH3 SCSF - quantity 2

  • CJG 21V - quantity 1

Add Comment

Image 1/1:
  • Trackpad - quantity 1

Add Comment

Image 1/3: Phillips #00 trackpad bracket screw - black - quantity 3
  • Phillips #00 trackpad bracket screw - silver - quantity 3

  • Phillips #00 trackpad bracket screw - black - quantity 3

  • T5 Torx trackpad set screw - quantity 1

Add Comment

Image 1/1: Silicon Storage Technology 25VF020 - quantity 1
  • Trackpad cable

    • Silicon Storage Technology 25VF020 - quantity 1

    • Broadcom BCM5976A0KUB2G - quantity 1

    • SBO - quantity 1

    • A1 - quantity 6

Add Comment

Image 1/1:
  • Trackpad backing plate - quantity 1

Add Comment

Image 1/1:
  • Trackpad retaining bracket - quantity 2

Add Comment

Image 1/1: 818-2707 ANSI D 022912 C13 4
  • Keyboard backlight - quantity 1

    • 818-2707 ANSI D 022912 C13 4

Add Comment

Image 1/1:
  • Rubber display hinge cover - quantity 2

Add Comment

Image 1/1:
  • Lower display hinge bracket - quantity 2

Add Comment

Image 1/1:
  • Upper display hinge bracket - quantity 2

Add Comment

Image 1/2: Parade Technologies DP635 - quantity 1
  • Retina display front panel assembly - quantity 1

    • Parade Technologies DP635 - quantity 1

    • SM4031 DA1210 SMCP1008 - quantity 1

    • i7990 H213383 - quantity 1

Add Comment

Image 1/3: GD EB D29 - quantity 1
  • 416R 8115 - quantity 1

  • GD EB D29 - quantity 1

  • 29P Z3 - quantity 1

  • 21 YN - quantity 1

  • 37 Z3 - quantity 1

  • 5C8 - quantity 2

  • N1 - quantity 1

Add Comment

Image 1/3: Phillips #00 Retina display middle screw - quantity 6
  • Phillips #00 antenna screw - quantity 7

  • Phillips #00 Retina display middle screw - quantity 6

  • Phillips #00 Retina display corner screw - quantity 4

Add Comment

Image 1/3: 1M
  • Light guide plate - quantity 1

    • 1M

    • AE009A E9-1

Add Comment

Image 1/1:
  • White paper backdrop for LED backlights - quantity 1

Add Comment

Image 1/1: Prism film - quantitiy 1
  • Diffuser film - quantity 2

  • Prism film - quantitiy 1

  • Polarizing sheet - quantity 1

Add Comment

Image 1/2: Career QT003A-S368-0J-L3/QT003A-12A S 1216
  • Retina display LED backlight strip - quantity 1

    • Career QT003A-S368-0J-L3/QT003A-12A S 1216

Add Comment

Image 1/1:
  • Display bezel rubber dust gasket - quantity 1

Add Comment

Image 1/1: Left display hinge- quantity 1
  • Display data cable - quantity 1

  • Left display hinge- quantity 1

Add Comment

Image 1/1: Right display hinge - quantity 1
  • Wi-Fi/Bluetooth antenna and cable assembly - quantity 1

  • Right display hinge - quantity 1

Add Comment

Image 1/2: T5 Torx lower display hinge bracket screw - quantity 2
  • T9 Torx display hinge screw - quantity 6

  • T5 Torx lower display hinge bracket screw - quantity 2

Add Comment

Image 1/1:
  • Display hinge clutch cover - quantity 1

Add Comment

Image 1/2: Sleep/Wake Magnet - quantity 1
  • 6 magnet display closure assembly - quantity 2

  • Sleep/Wake Magnet - quantity 1

Add Comment

Image 1/2: Phillips #00 FaceTime board screw - quantity 2
  • FaceTime camera and microphone assembly - quantity 1

  • Phillips #00 FaceTime board screw - quantity 2

Add Comment

Image 1/2: T240 Mq5J - quantity 1
  • Vimicro VC0358 - quantity 1

  • T240 Mq5J - quantity 1

  • O #1146 LH3 - quantity 1

  • 20826 - quantity 1

Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.

10 other people completed this guide.

0 Comments

Add Comment
