Exploded View of Motorola i710 with Tools

Teardown

Teardown

Teardowns provide a look inside a device and should not be used as disassembly instructions.

Prerequisite Only

Prerequisite Only

Please note that this guide is only a prerequisite for other guides.

Edit Step 1 Exploded View of Motorola i710 with Tools  ¶

Image 1/2: Tools from left to right: screw driver handle, Trox T5 drill bit, Hex H1.5 drill bit, plastic opening tools (2), tweezers, spudger.

Edit Step 1 Exploded View of Motorola i710 with Tools  ¶

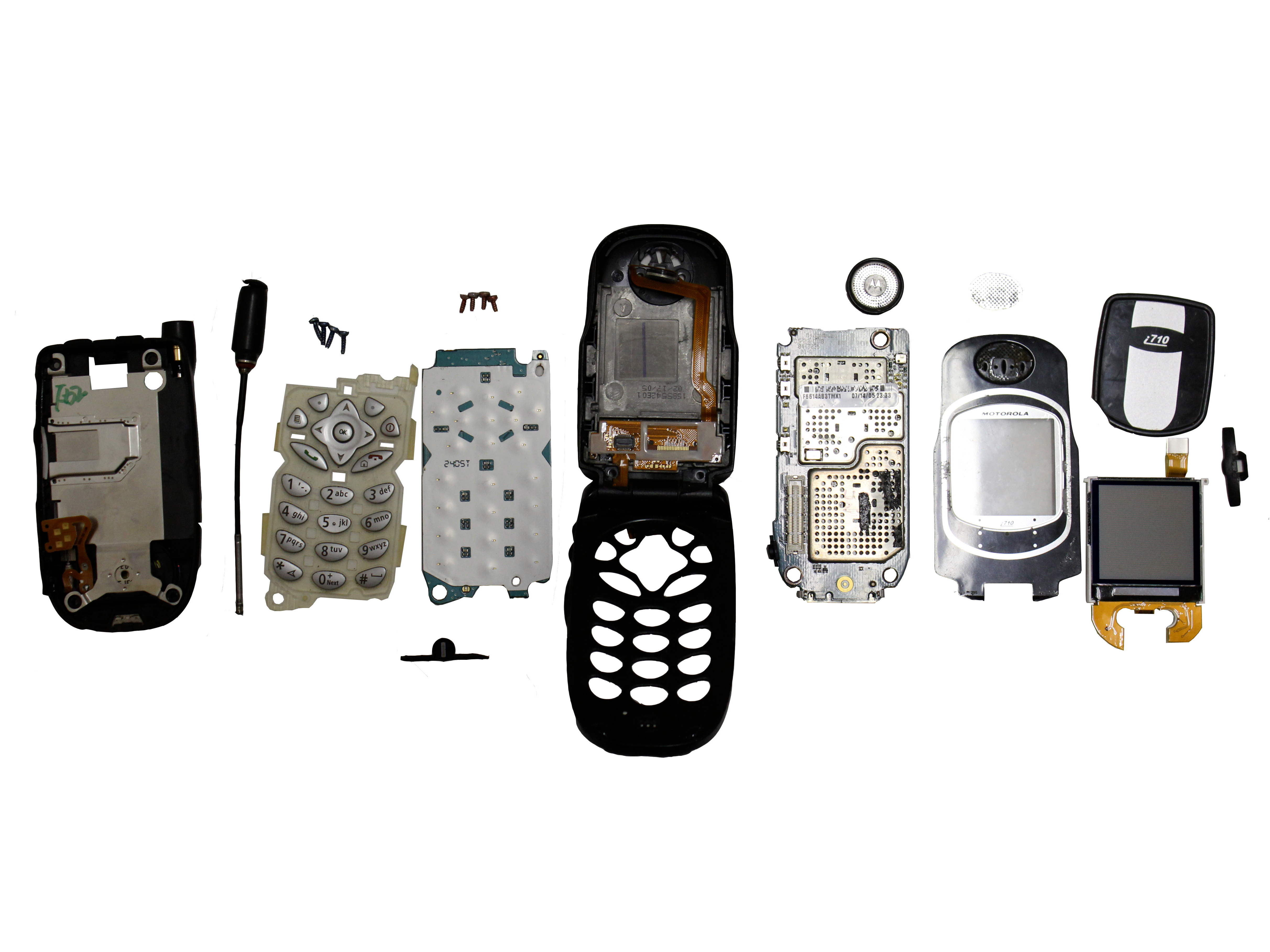

  • Component from left to right: bottom housing unit, antenna, rubber keypad, keypad sensor, microphone(bottom), phone casing, external speaker cover (top), motherboard, speaker cover(top), screen cover, name plate (top), LCD screen (bottom), charger cover. Not shown: back cover, battery.

  • Tools from left to right: screw driver handle, Trox T5 drill bit, Hex H1.5 drill bit, plastic opening tools (2), tweezers, spudger.
