This teardown is not a repair guide. To repair your Nexus S, use our service manual.

  1. Nexus S Teardown, Nexus S Teardown: step 1, image 1 of 2 Nexus S Teardown, Nexus S Teardown: step 1, image 2 of 2
    • The Nexus S is a variation of the Samsung Galaxy S, sporting more or less the same hardware specifications as its brethren.

    • Notable changes to the Nexus S include NFC (Near Field Communication) support and a Super AMOLED Contour Display.

    • Tech Specs:

    • 1 GHz ARM Cortex-A8 Hummingbird Multimedia Applications Processor based on the ARMv7 architecture.

    • 16 GB internal storage capacity

    • 512 MB total RAM

    • 5 MP rear-facing camera and a VGA (640x480) front-facing camera.

    • Android 2.3 (Gingerbread)

  2. Nexus S Teardown: step 2, image 1 of 2 Nexus S Teardown: step 2, image 2 of 2
    • A side-by-side comparison of the Samsung-made Nexus S and its HTC-manufactured older sibling, the Nexus One.

    • It's not just an optical illusion, the Nexus S is smiling at you! This is the first smartphone to feature a Contour Display, meaning the display glass is slightly curved to be more comfortable for users.

  3. Nexus S Teardown: step 3, image 1 of 2 Nexus S Teardown: step 3, image 2 of 2
    • Without any further ado, let's start tearing this phone apart!

    • The entire back cover comes right off without a fuss, giving us a first glimpse of the battery.

    • We used a plastic opening tool to peel the NFC antenna module off the back cover. According to Google: "Nexus S can read information from 'smart' tags, or everyday objects that have NFC chips in them. These can be anything from stickers and movie posters to t-shirts."

    • Looks like something straight out of Tron: Legacy.

  4. Nexus S Teardown: step 4, image 1 of 2 Nexus S Teardown: step 4, image 2 of 2
    • The battery is extremely easy to remove and comes out next.

    • The 3.7 V, 5.55 Watt-hours Lithium ion cell provides up to 6.7 hours of talk time on a 3G network, and up to 14 hours on a 2G network.

    • The battery inside the Nexus S is rated at 1500 mAh. That's slightly higher than the 1400 mAh rating of the Nexus One's battery.

    • Don't feed this battery to a baby.

  5. Nexus S Teardown: step 5, image 1 of 3 Nexus S Teardown: step 5, image 2 of 3 Nexus S Teardown: step 5, image 3 of 3
    • After removing six screws with our trusty Phillips #00 screwdriver, a little prying with a plastic opening tool lets us remove the inner case.

  6. Nexus S Teardown: step 6, image 1 of 2 Nexus S Teardown: step 6, image 2 of 2
    • Taking out the motherboard requires removing three Phillips screws and disconnecting a few cables here and there.

    • The design of the motherboard is peculiar to us. It is designed such that its inner perimeter encloses the battery. We've seen oddly-shaped PCBs before, but rarely do they have giant holes in the middle of them.

  7. Nexus S Teardown: step 7, image 1 of 2 Nexus S Teardown: step 7, image 2 of 2
    • A handy plastic opening tool helps separate the SIM card reader from the rest of the motherboard.

    • The Nexus S is unlocked right out of the box and can be used with a Quad-band (850, 900, 1800, 1900) GSM carrier and is Tri-band HSPA (900, 2100, 1700) compatible.

    • For you AT&T customers out there, just a quick reminder that the Nexus S does not support the 850 MHz and 1900 MHz HSPA frequency bands required for 3G mobile data.

  8. Nexus S Teardown: step 8, image 1 of 2 Nexus S Teardown: step 8, image 2 of 2

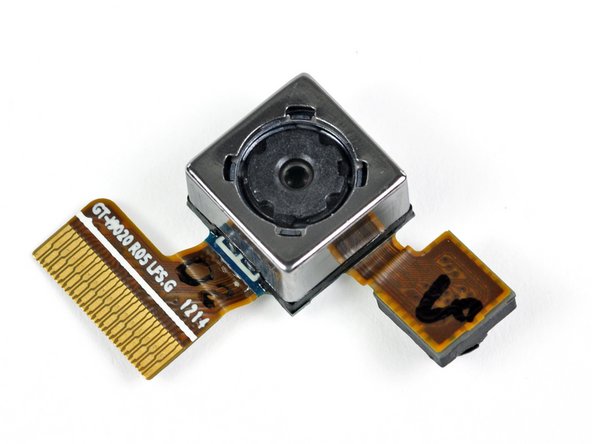

    • Much like the Samsung Galaxy S, the Nexus S features both a rear and front-facing camera.

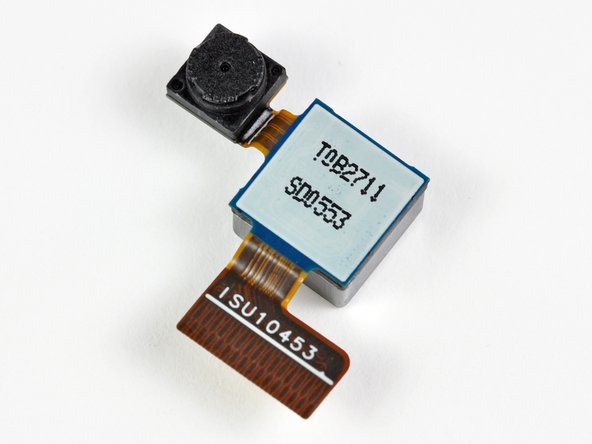

    • Interestingly, the two cameras share the same connector on the motherboard and can be removed as a singular unit.

    • The front-facing VGA camera provides a resolution of 640 x 480 pixels.

  9. Nexus S Teardown: step 9, image 1 of 2 Nexus S Teardown: step 9, image 2 of 2

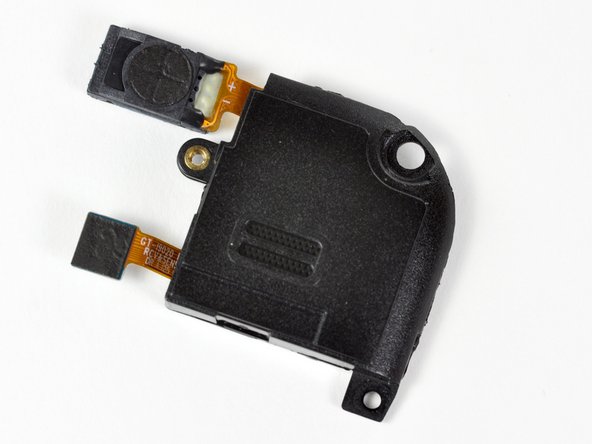

    • The EM-Tech EME1511AFRC integrates the earpiece speaker, loudspeaker for speakerphone and media use, and a sensor bank all into one unit with a singular shared data connector.

    • This is definitely a win for integration, but at the same time forces users to replace the entire unit if only one component malfunctions.

  10. Nexus S Teardown: step 10, image 1 of 2 Nexus S Teardown: step 10, image 2 of 2

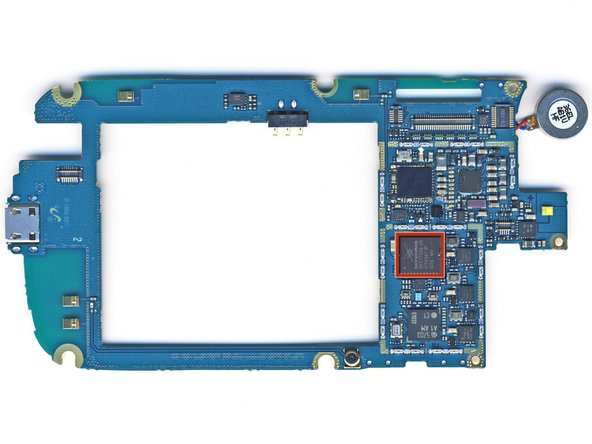

    • Big players on the motherboard include:

    • Skyworks SKY77529 Tx Front-End Module for Dual-Band GSM / GPRS / EDGE

    • SanDisk SDIN4C2 16GB MLC NAND flash.

    • Samsung KB100D00WM-A453 memory package and S5PC110A01 1GHz Cortex A8 Hummingbird Processor.

    • Infineon 8824 XG616 X-Gold baseband processor

    • Wolfson Microelectronics WM8994 ultra-low power audio codec.

  11. Nexus S Teardown: step 11, image 1 of 1

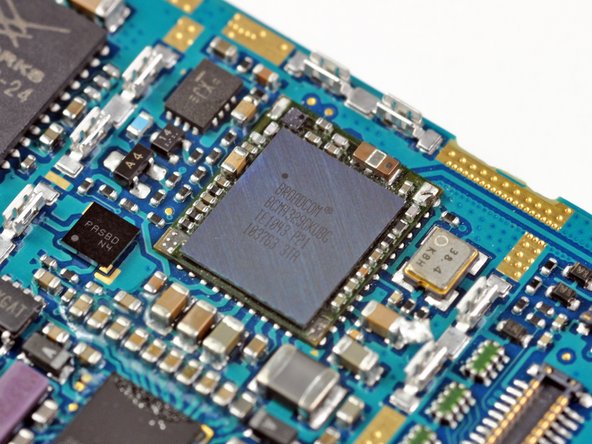

    • Hidden underneath an EMI cover is the Broadcom Wi-Fi chip.

    • The chip reads: BCM4329GKUBG TE1043 P21

    • According to UBM Techinsights, the chip is a low-power package with 802.11n, Bluetooth 2.1, and FM capability.

    • Variants of this chip have been around for over a year. We first saw it used in the 3rd generation iPod Touch.

  12. Nexus S Teardown: step 12, image 1 of 2 Nexus S Teardown: step 12, image 2 of 2

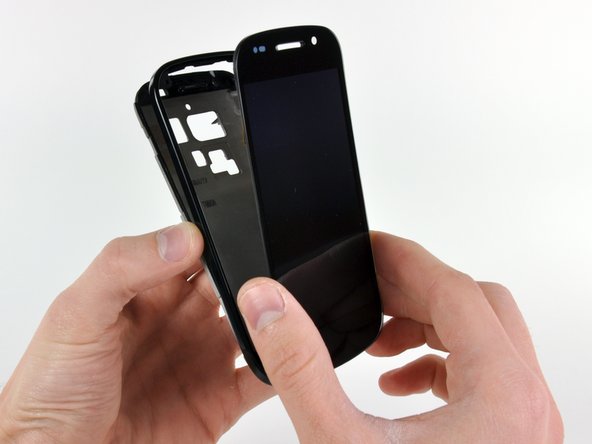

    • Removing the display presented us with the first stumbling block in our disassembly. A heat gun made quick work of the front case assembly, though.

  13. Nexus S Teardown: step 13, image 1 of 2 Nexus S Teardown: step 13, image 2 of 2

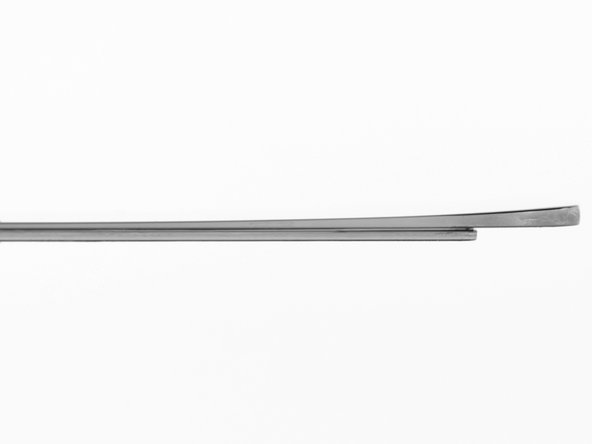

    • Here you can see a side view of the Super AMOLED display and front glass panel.

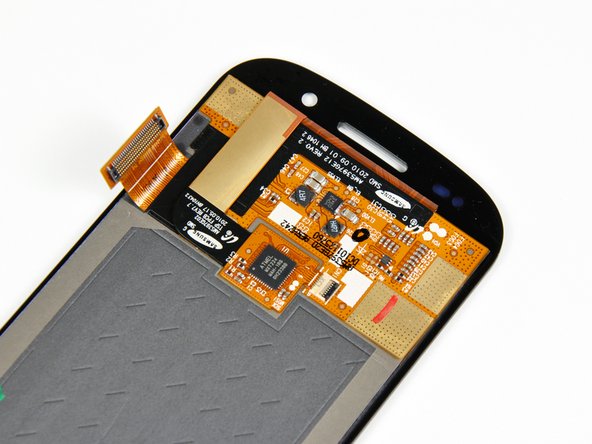

    • The Super AMOLED is attached to the front glass. The digitizer is a PET layer between the glass and the display.

    • You can definitely see that only the front glass panel is curved. The rest of the components are flat as a board, just as any other phone on the market.

    • Google describes it as a "...curved glass screen...", however that may be misconstrued to mean a curved Super AMOLED display, which is a bit misleading.

    • There's also a small PCB on the back of the display with an Atmel MXT224 touchscreen controller on it.

  14. Nexus S Teardown: step 14, image 1 of 2 Nexus S Teardown: step 14, image 2 of 2
    • Nexus S Repairability Score: 7 out of 10 (10 is easiest to repair)

    • Battery is very easily replaceable -- just remove the back cover to swap it out.

    • The motherboard comes out easily once you're inside, as it's held in place by regular screws and connectors.

    • A lot of the phone's components are modular, meaning that they're simpler to replace, but will cost more as replacement parts.

    • Front panel is attached with adhesive instead of screws, so it's harder to take off than on the iPhone.

    • If you shatter the front panel glass, the SAMOLED has to be replaced as well -- they're fused together.
