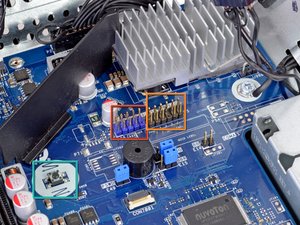

According to the Z1 treasure map, this little button is for resetting the CMOS. No more jumpers to short out. Cool.
This connector is where the power button plugs into the motherboard.
And, according to the same treasure map, this connector allows you to plug in a second internal USB port, should you need another one inside the device.
