Installing Nintendo Wii Motherboard

Replace a dead motherboard on your Wii.

  • Add Note x
  • x 8

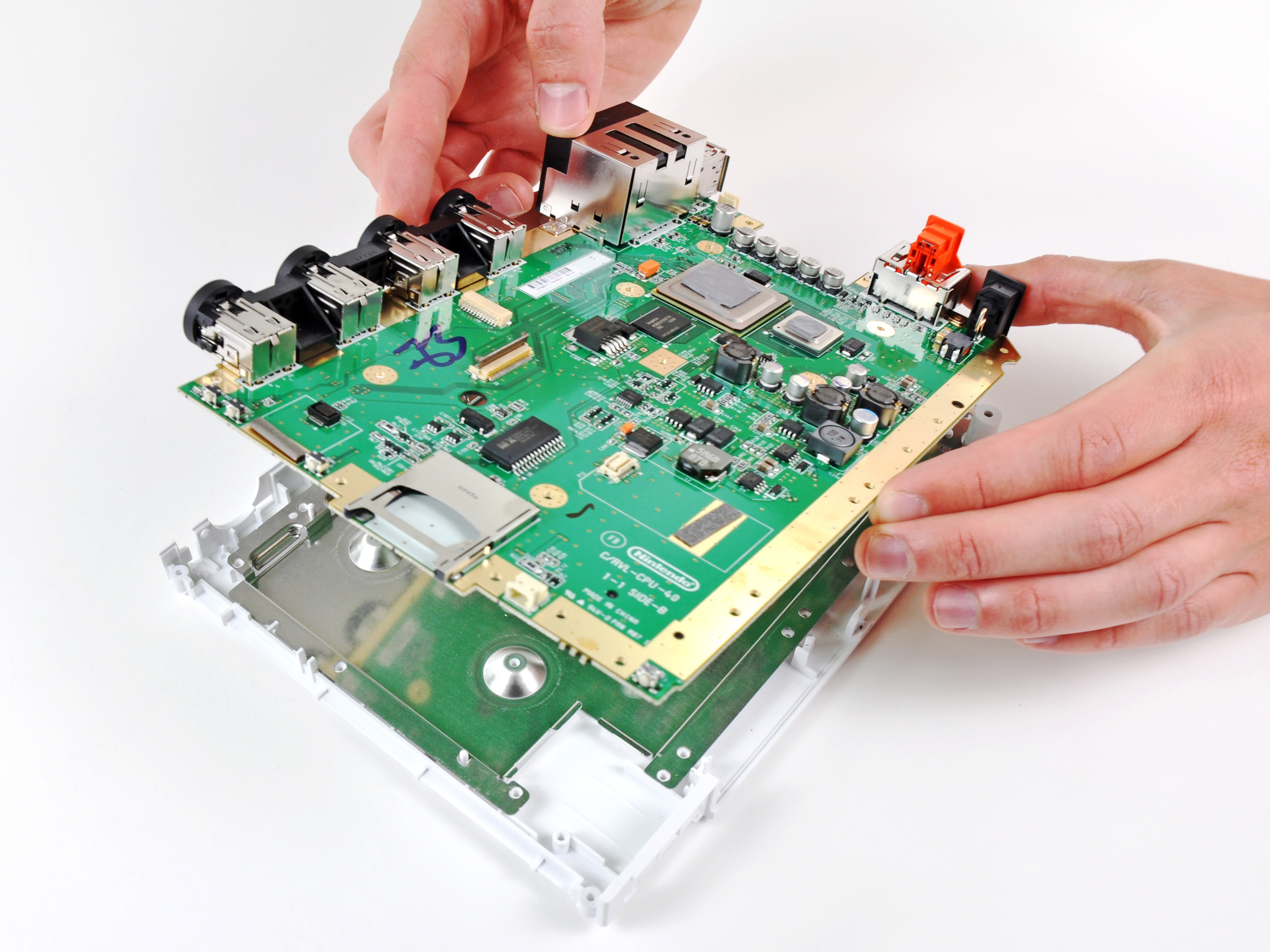

Use this guide to replace your Wii's motherboard. Replacing the motherboard requires removal of nearly every component inside the Wii.

Sections
Tools
Tools (continued)
Relevant Parts
Image #1 Image #2

Add Note Edit Step 1 — Faceplate  ¶

  • Use a metal spudger to remove the white plastic screw covers stuck to the lower case near the front of the Wii.

Image #1

Add Note Edit Step 2  ¶

  • Remove the two 8.3 mm Tri-Wing screws hidden under the covers you just removed.

Image #1

Add Note Edit Step 3  ¶

  • Remove the single 5.9 mm Phillips screw under the controller port door nearest the faceplate.

Image #1

Add Note Edit Step 4  ¶

  • Use a metal spudger to remove the rubber foot stuck to the side of the Wii near the DVD drive opening.

Image #1

Add Note Edit Step 5  ¶

  • Remove the single 5.9 mm Phillips screw hidden under the foot you just removed.

Image #1 Image #2

Add Note Edit Step 6  ¶

  • Carefully pull the faceplate away from the front of the Wii.

  • Use a pair of tweezers to disconnect the LED cable's plastic connector from the motherboard.

  • Remove the faceplate.

Image #1 Image #2 Image #3

Add Note Edit Step 7 — Outer Case  ¶

  • Open the controller port cover until it is perpendicular to the black controller port bezel.

  • Pull the controller port cover straight up to release it from the outer case.

  • Repeat this procedure for the memory card port cover.

Image #1 Image #2

Add Note Edit Step 8  ¶

  • Remove the two remaining 4.1 mm Phillips screws along the top edge of the black plastic controller port bezel.

  • Lift the bezel from the long edge furthest away from the controller ports and remove it from the Wii.
