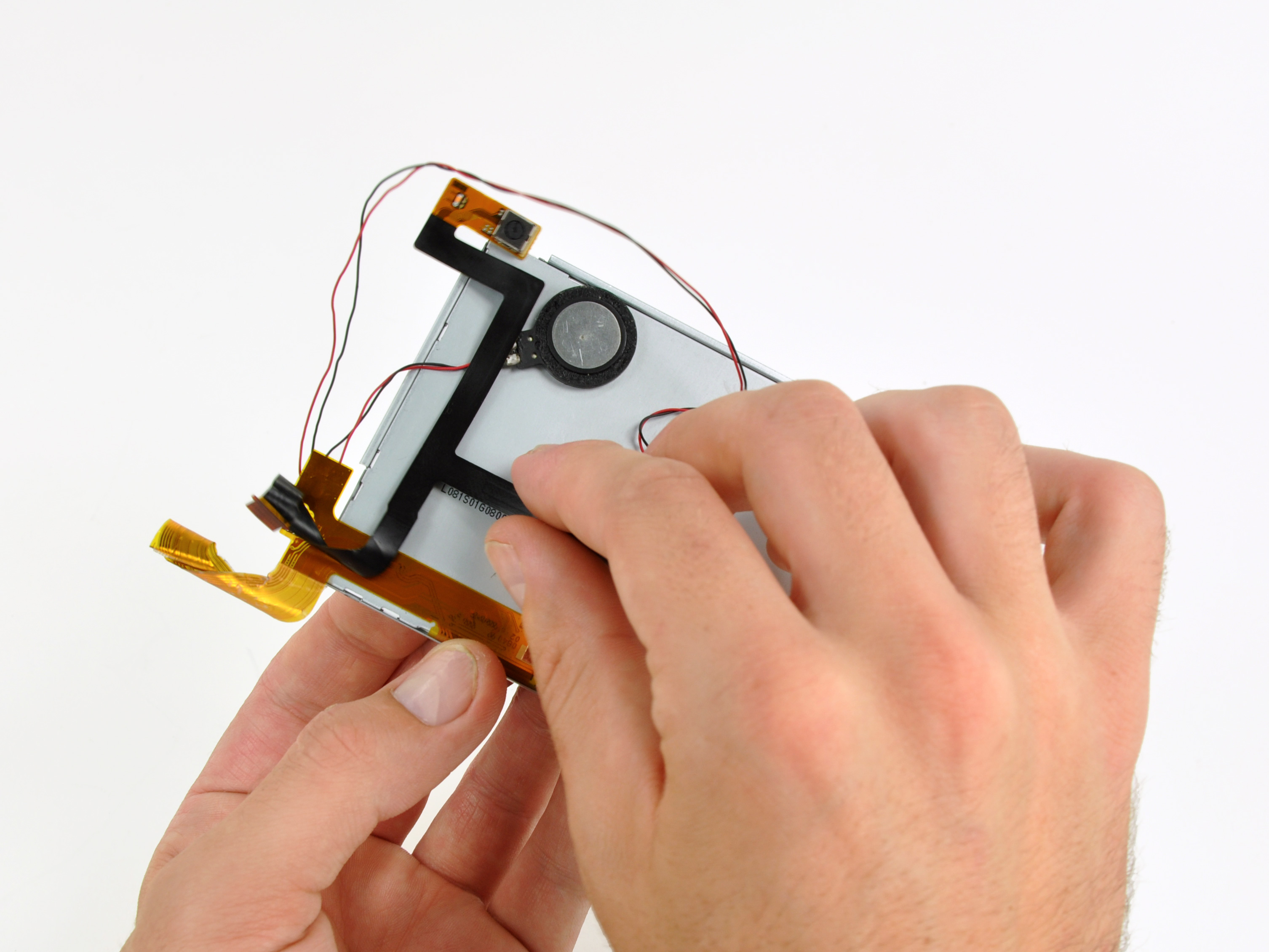

Installing Nintendo DSi XL Camera Ribbon

Camera Ribbon Replacement

Get back to taking pictures by replacing the camera ribbon cable in your DSi XL.

Sections
Tools
Relevant Parts
Image #1 Image #2

Add Note Edit Step 1 — Battery  ¶

  • Remove the two Phillips screws securing the battery cover to the back of the handheld console.

  • Lift the battery cover off the back of the DSi XL.

Image #1

Add Note Edit Step 2  ¶

  • Lift the battery from the DSi XL.

Image #1 Image #2 Image #3

Add Note Edit Step 3 — Lower Case  ¶

  • Remove the four rubber screw covers on the lower case by prying them up with a push pin.

Image #1

Add Note Edit Step 4  ¶

  • Remove the following seven Phillips screws that secure the lower case to the rest of the DSi XL:

    • Four silver 5.3 mm screws

    • Two black 5.3 mm screws

    • One black 2.5 mm screw

Image #1 Image #2 Image #3

Add Note Edit Step 5  ¶

  • Turn the DSi XL over, and open the display.

  • Insert a spudger between the upper and lower case at the bottom left corner of the DSi.

  • Slide the spudger along the bottom edge of the upper case to release the latches securing the upper case to the lower case.

Image #1 Image #2

Add Note Edit Step 6  ¶

  • Close the display and turn the DSi XL over.

  • Lift the lower case from the front edge.

  • Rotate the lower case away from the DSi.

  • The lower case cannot be completely removed yet, since it is still connected to the motherboard.

Image #1 Image #2

Add Note Edit Step 7  ¶

  • Using a spudger, pry the SD card/right shoulder button connector off its socket.

  • Pry the volume button/left shoulder button connector off its socket on the motherboard with a spudger.

Image #1 Image #2

Add Note Edit Step 8 — Wi-Fi Board  ¶

  • Lift the Wi-Fi board up off its socket on the motherboard.

  • Do not attempt to completely remove the Wi-Fi board yet. It is attached to the motherboard by an antenna cable.
