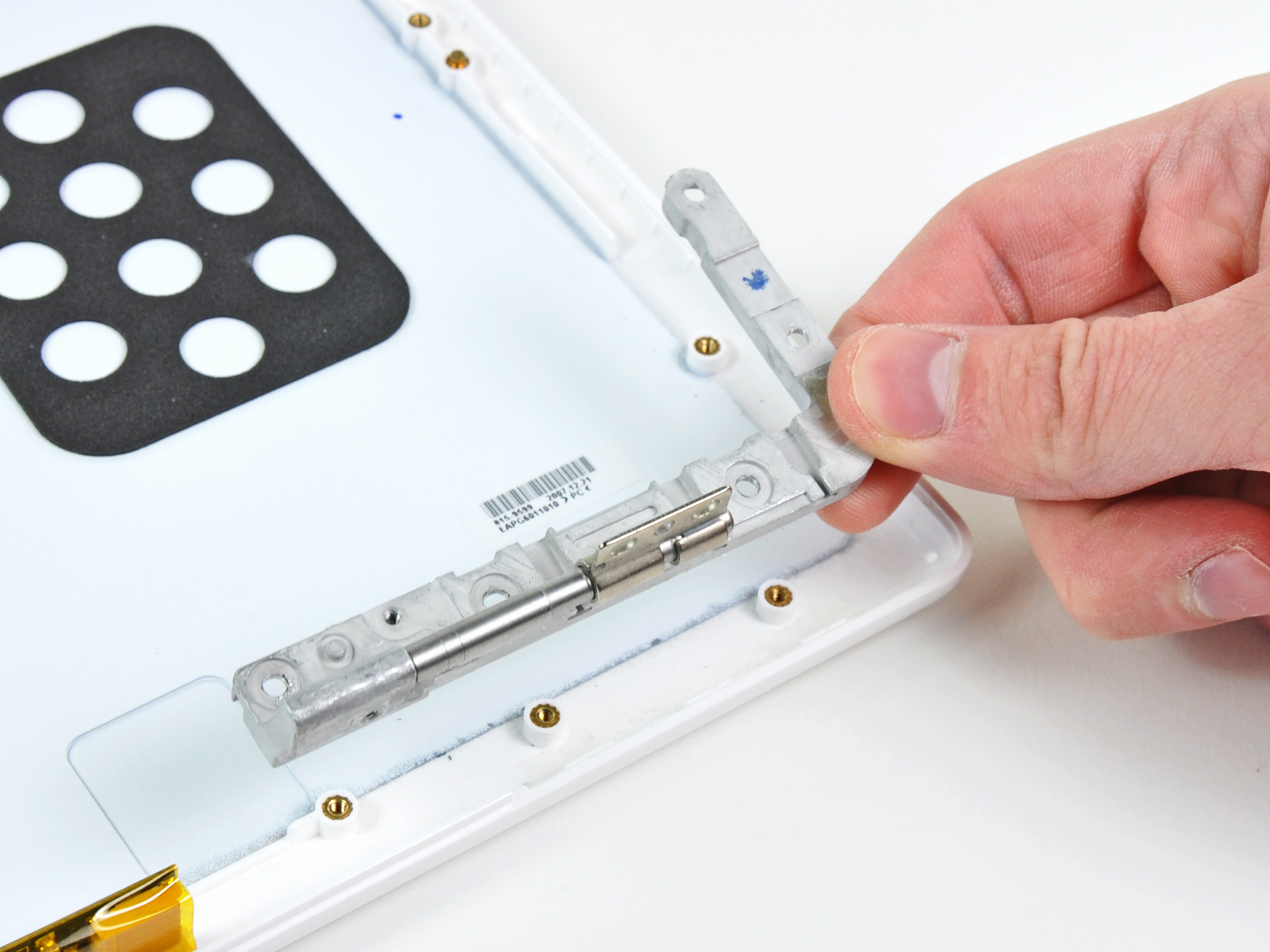

Installing MacBook Core Duo Right Clutch Hinge

Replace a broken right clutch hinge on your MacBook Core Duo.

  • Author: iRobot
  • Difficulty: Difficult
  • Add Note x
  • x 14

A MacBook display is only as good as its weakest link. If that weak link happens to be the right clutch hinge, replace it with a new one.

Sections
Tools
Relevant Parts
Image #1

Add Note Edit Step 1 — Battery  ¶

  • Use a coin to rotate the battery-locking screw 90 degrees clockwise.

Image #1

Add Note Edit Step 2  ¶

  • Lift the battery out of the computer.

Image #1

Add Note Edit Step 3 — Memory Cover  ¶

  • Remove the three evenly-spaced Phillips screws from along the rear wall of the battery compartment.

  • The screws are captive to the metal memory cover.

Image #1

Add Note Edit Step 4  ¶

  • Lift up on L-shaped memory cover, slide it to the right, and lift it out of the computer.

Image #1

Add Note Edit Step 5 — Upper Case  ¶

  • Remove the following 3 screws:

    • One 11 mm Phillips #00 in the middle of the case.

    • Two 14.5 mm Phillips #00.

  • If the screws stick in the case, you can use a magnetized screwdriver to draw them out.

  • The shorter of the three screws goes in the middle.

Image #1

Add Note Edit Step 6  ¶

  • Remove the following 3 screws from the rear wall of the battery compartment:

    • Two 3 mm Phillips #00.

    • One 4 mm Phillips #00 on the right side.

  • When reinstalling these screws, press gently on the lower case to line up the screw holes.

Image #1

Add Note Edit Step 7  ¶

  • Remove the two 6 mm Phillips #00 screws from either side of the right wall of the battery compartment (not the ones closest to the battery connector).

Image #1

Add Note Edit Step 8  ¶

  • Remove the four 3 mm indicated Phillips #00 screws from the front wall of the battery compartment. When working from the left, remove the 2nd, 4th, 7th and 9th screw.

Next » « Previous
